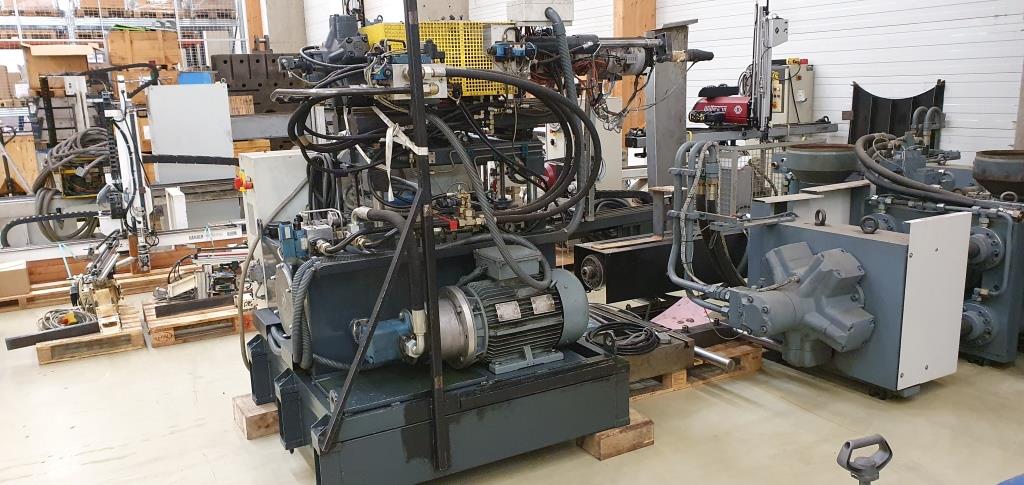

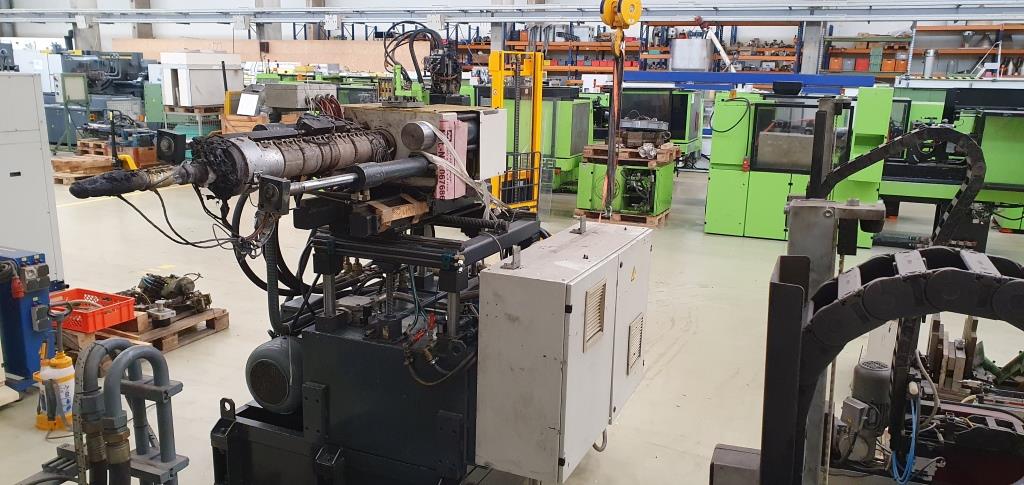

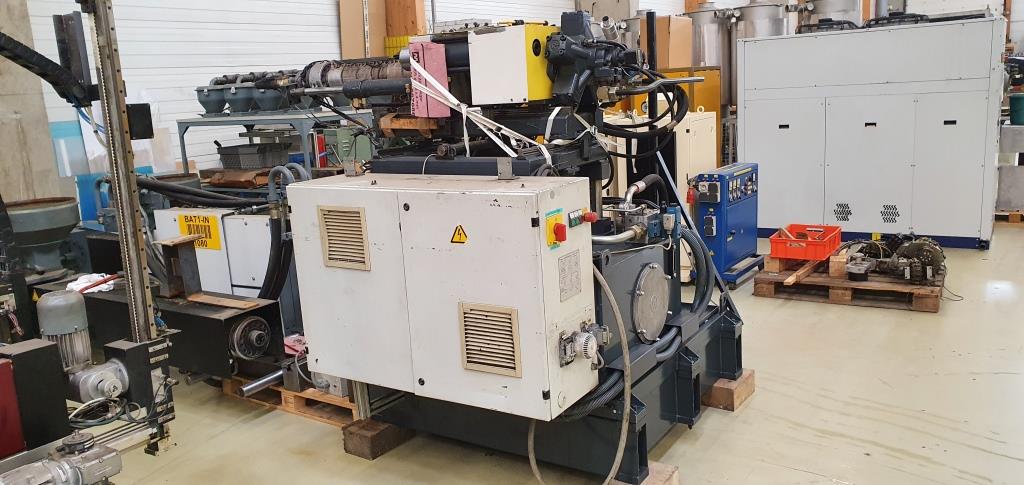

Windsor Plug X Press
| Details |
| Manufacturer: | Windsor Plug X Press |
| Type of machine: | WKT 4 |
| Year: | 2001 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | B & R |
| Screen text: | German |
| Operating hours: | hrs |
| Price: | on request |
Technical details
| Injection unit | |
|---|---|
| Screw diameter: | 42 mm |
| Ls/D ratio: | 4 |
| Injection pressure: | 1800 bar |
| Stroke volume: | 230 ccm |
| Shot weight, PS: | 207 g |
| Screw speed: | 379 1/min |
| Plasticising rate max.: | 20 g/s |
| Nozzle pressure: | 65 KN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 14 kW |
| Adjustable barrel heating zones: | |
| Reservoir capacity: | 400 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 2.54 m x 1,75 m x 2,15 m |
| Total machine weight: | 3.000 kg |
| Accessories | |
|---|---|
| - Anti vibration - - |
| Additional information | |
|---|---|
| - |
