Krauss Maffei KM 420 - 2700 - 1000 CZ
| Details |
| Stock no.: | 10498 |
| Manufacturer: | Krauss Maffei |
| Type of machine: | KM 420 - 2700 - 1000 CZ |
| Year: | 1999 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Eschweiler - Germany |
| Controlversion: | MC 4 |
| Screen text: | German / English |
| Operating hours: | 51448 h |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 4200 kN |
| Mould opening force, max.: | 250 kN |
| Travel force movable platen Opening: | 124 kN |
| Travel force movable platen Closing: | 102 kN |
| Size of mould platens (h x v): | 1470 mm x 1510 mm |
| Distance between tie bars (h x v): | 1000 mm x 1000 mm |
| Mould opening stroke: | 1020 mm |
| Mould height min.: | 380 mm |
| Max daylight: | 1400 mm |
| Hydraulic ejector - stroke: | 250 mm |
| Ejector force forward/backward: | 95/48 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 60 / 60 mm |
| Ls/D ratio: | 21 / 18 |
| Injection pressure: | 2000 / 1600 bar |
| Stroke volume: | 679 / 622 ccm |
| Shot weight, PS: | 618 / 566 g |
| Injection rate: | 325 / 339 ccm/s |
| Screw speed: | 259 / 278 1/min |
| Plasticising rate max.: | 58 / 59 g/s |
| Nozzle pressure: | 110 / 110 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 90 kW |
| Installed heating capacity: | 19 + 23 kW |
| Adjustable barrel heating zones: | 6 / 5 |
| Reservoir capacity: | 1075 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 7,80 m x 2,75 m x 3,20 m |
| Total machine weight: | 28000 kg |
| Max. mould weight: | 6700 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - Hopper |
| Additional information | |
|---|---|
| - Electrical screw motor for
injection unit 1000 - 10 x pneumatic sequentional valves - 6 x hydraulic sequentional valves - Mechanical interface for Robot - Electrical Robotinterface as per Euromap 12 - increased oil cooling - Accumulator for high speed injection and parallel movements - 2 x core pulls on movable plate - 2 x core on fix plate - 32-zone hotrunner controller |

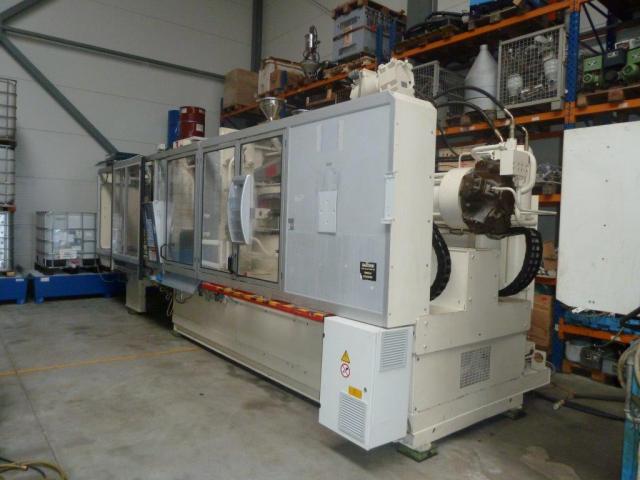

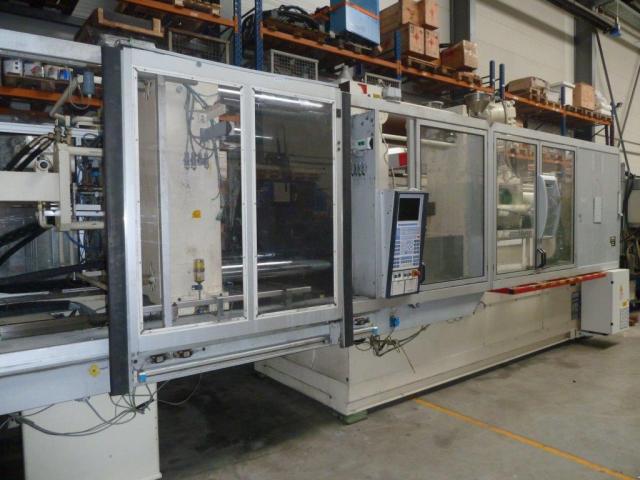

| Picture |
|---|
