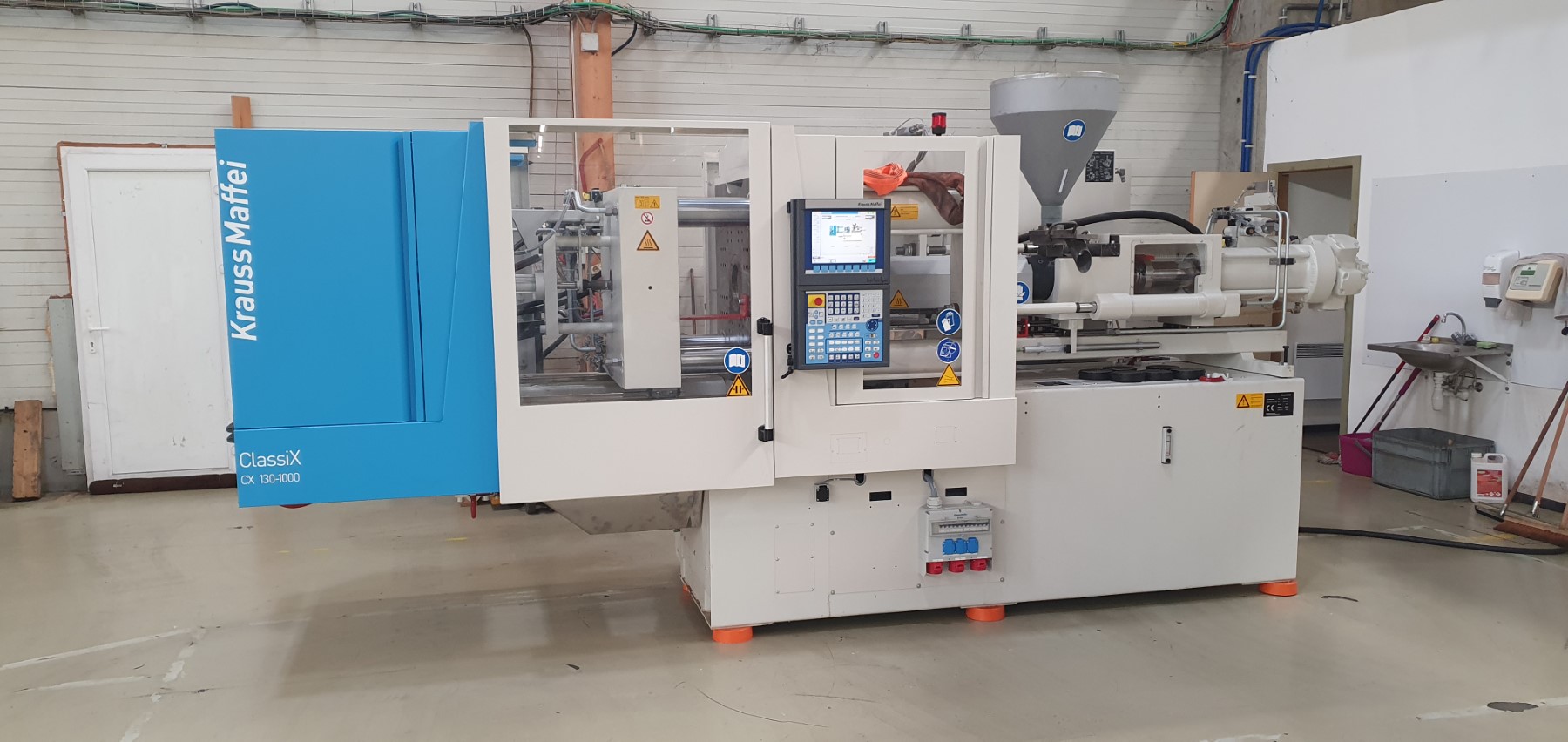

| Krauss Maffei KM 130 - 1000 CX |
| Details |
| Manufacturer: | Krauss Maffei |
| Type of machine: | KM 130 - 1000 CX |
| Year: | 2011 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |

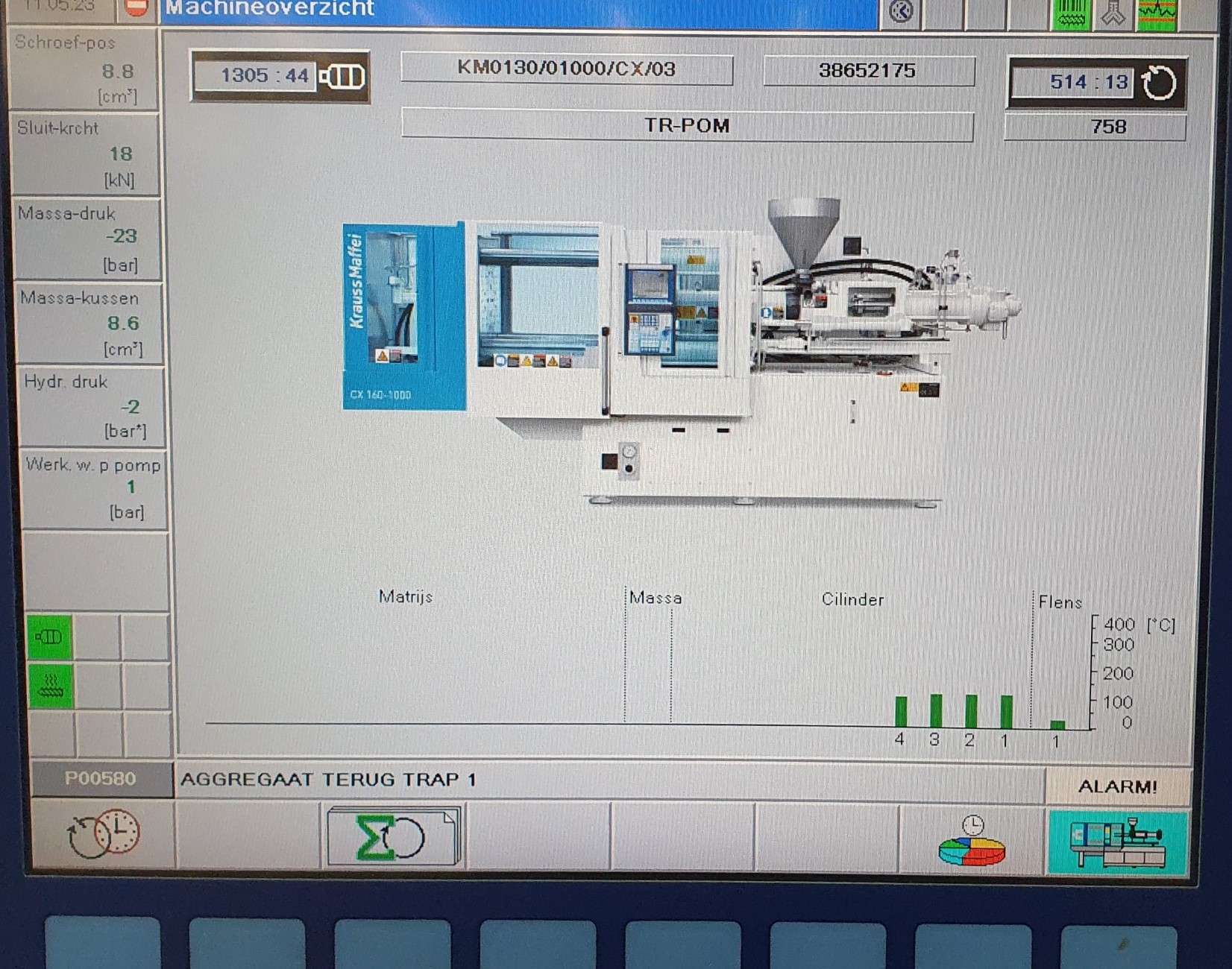

| Controlversion: | MC 5 |
| Screen text: | German / Dutch |
| Operating hours: | 513 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.300 kN |
| Size of mould platens (h x v): | 745 mm x 770 mm |
| Distance between tie bars (h x v): | 470 mm x 470 mm |
| Mould opening stroke: | 600 mm |
| Mould height min.: | 300 mm |
| Mould height max.: | 900 mm |
| Max daylight: | 900 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 22,6 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 50 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 2304 bar |
| Stroke volume: | 432 cm |
| Shot weight, PS: | 393 g |
| Injection stroke: | mm |
| Screw speed: | 195 / 295 1/min |
| Plasticising rate max.: | 28,6 g/s |
| Nozzle pressure: | 82 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 19,2 kW |
| Adjustable barrel heating zones: | 1+4 |
| Pump power | 30 Kw |
| Oil | 489 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 8.000 kg |
| Dimensions ( L x B x H ) | 5 x 1.6 x 2.2 m |
| Accessories | |
|---|---|
| - 2 x Core BWAP - 2 x Core FWAP - 1 x Air valve - Interface Fluid Injector Euromap 62 - Anti vibration pads |
| Additional information | |
|---|---|
|
Video Picture |
|---|
