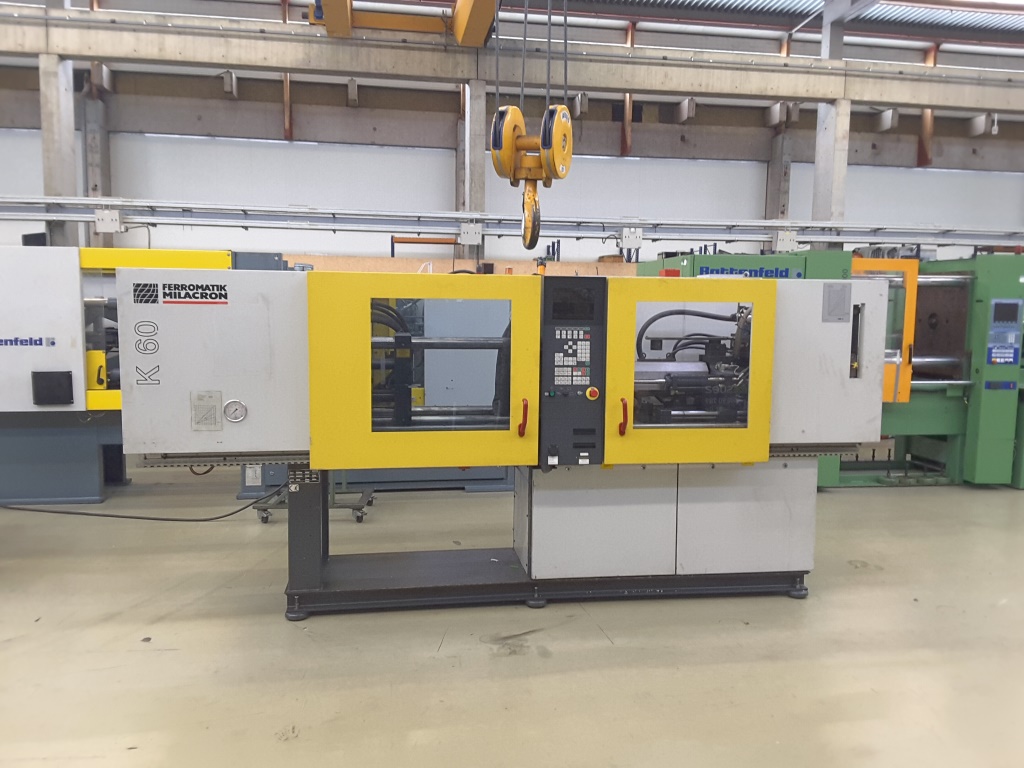

Ferromatik K 60 S
| Details |
| Manufacturer: | Ferromatik |
| Type of machine: | K 600 / 265 S |
| Year: | 1998 |
| Delivery time: | Now |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | IQT 33 / 44 |
| Screen text: | German / English / Dutch |
| Operating hours: | 54.402 hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 600 kN |
| Size of mould platens (h x v): | 520 mm x 510 mm |
| Distance between tie bars (h x v): | 355 mm x 355 mm |
| Mould opening stroke: | 420 mm |
| Mould height min.: | 200 mm |
| Mould height max.: | - mm |
| Max daylight: | 620 mm |
| Hydraulic ejector - stroke: | 120 mm |
| Ejector force forward/backward: | 34 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| Ls/D ratio: | 17,3 |
| Injection pressure: | 1504 bar |
| Stroke volume: | ccm |
| Shot weight, PS: | 150 g |
| Screw speed: | 600 1/min |
| Plasticising rate max.: | 28 g/s |
| Nozzle pressure: | kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of E- motor: | 37 kW |
| Installed heating capacity: | kW |
| Adjustable barrel heating zones: | 3+1 |
| Reservoir capacity: | 175 tr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,8 m x 1,4 m x 2 m |
| Total machine weight: | 3.300 kg |
| Accessories | |
|---|---|
| - Anti vibration
- Shut Off Nozzle -
|
| Additional information | |
|---|---|
| - |
|
Video Picture |
|---|
