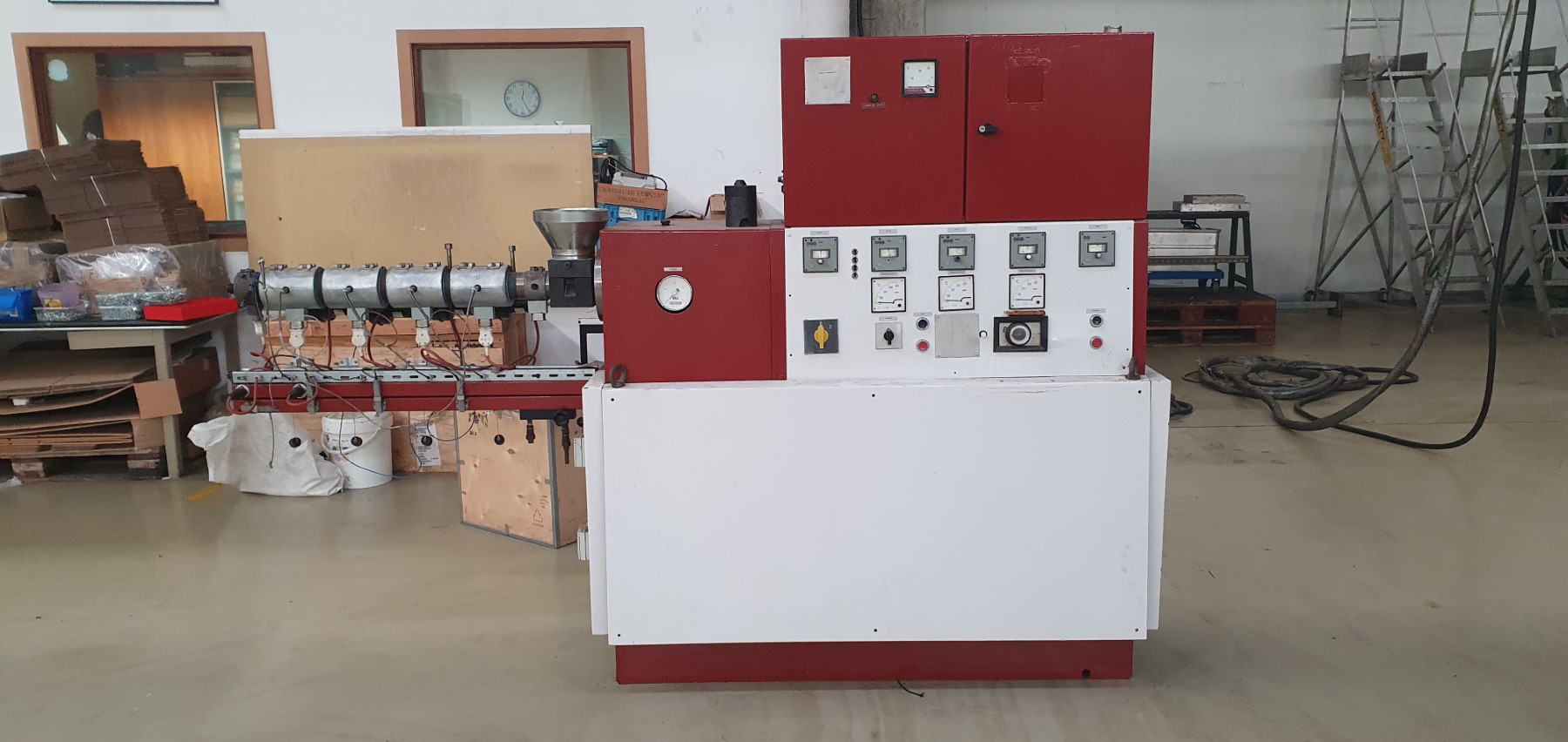

Berges Extruder PG 60
| Details |
| Manufacturer: | Bergers |
| Type of machine: | PG 60 |
| Year: | |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | |
| Screen text: | |
| Operating hours: | Hrs |
| Price: | on request |
Technical details
| Extruder unit | |
|---|---|
| Screw diameter: | 60 mm |
| Pitch of the screw | 160 mm. |
| Injection pressure: | 2100 bar |
| Stroke volume: | 452 ccm |
| Shot weight, PS: | 610 g |
| Plasticysing rate: | 1400 g /min. |
| Screw speed: | 30 - 100 rpm |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 1,5 kW |
| capacity of the screw Motor | 3 Kw |
| Installed heating capacity: | 1,5 kW |
| Reservoir capacity: | 25 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 2.6 m x 0.8 m x 1.8 m |
| Total machine weight: | 1500 kg |
| Accessories | |
|---|---|
| - |
| Additional information | |
|---|---|
| - - - - |
|
Picture |
|---|
 |
