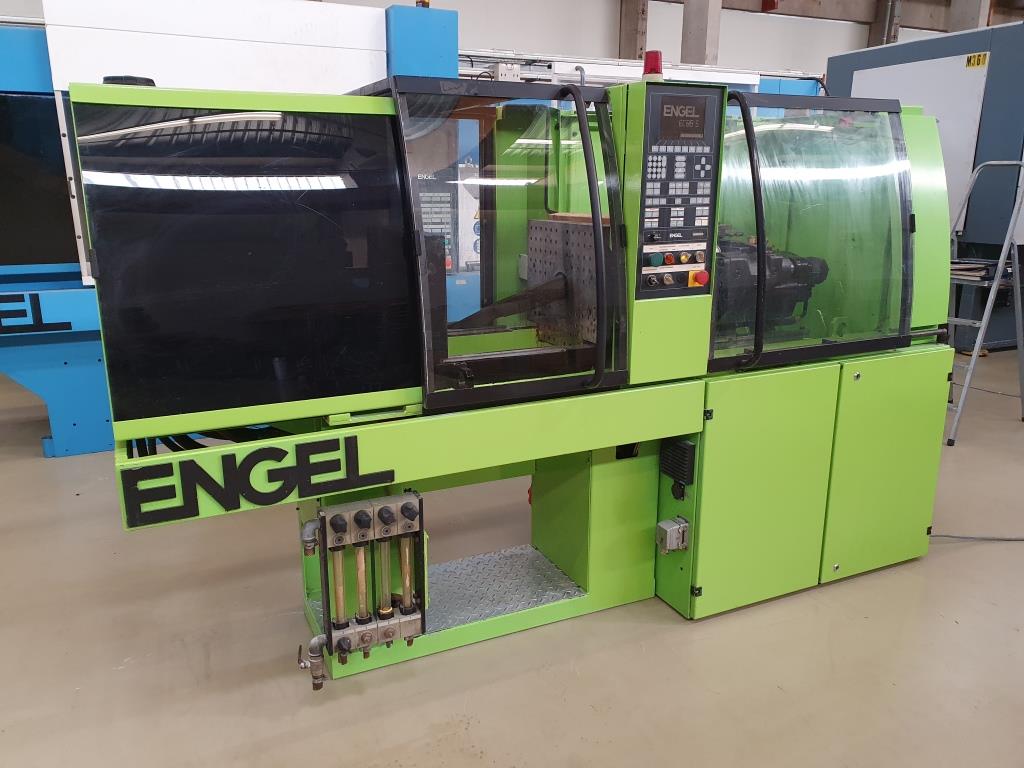

Engel ES 80 / 20 HL S
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 80 / 20 HL S |
| Year: | 1994 |
| Delivery time: | immediately |
| Terms of Delivery: | EX Works |
| Location: | B - 4340 Awans |
| Controlversion: | EC 88-S |
| Screen text: | Dutch |
| Operating hours: | hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 200 kN |
| Size of mould platens (h x v): | 470 mm x 380 mm |
| Distance between tie bars (h x v): | HL |
| Mould opening stroke: | 330 mm |
| Mould height min.: | 150 mm |
| Max daylight: | 480 mm |
| Hydraulic ejector - stroke: | 70 mm |
| Ejector force forward/backward: | 24 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 22 mm |
| Injection pressure: | 1500 bar |
| Stroke volume: | 38 ccm |
| Shot weight, PS: | 35 g |
| Injection rate: | 44 g /s |
| Screw speed: | 20-300 1/min |
| Nozzle pressure: | 28 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 5,5 kW |
| Installed heating capacity: | 5,9 kW |
| Adjustable barrel heating zones: | 3+1 |
| Reservoir capacity: | 80 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 2,72 m x 1,04 m x 1,8 m |
| Total machine weight: | 1800 kg |
| Accessories | |
|---|---|
| -Anti vibration pads - Robot interface - |
| Additional information | |
|---|---|
| - - - |
