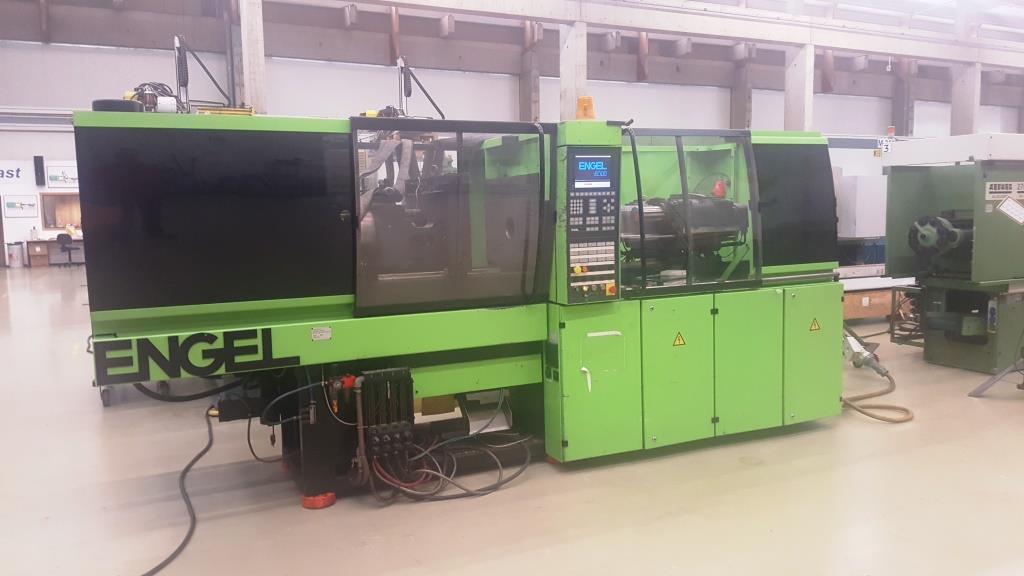

Engel ES 330 / 80 HL ST

Manufacturer: Engel
Type of machine: ES 330 / 80 HL ST
Year: 1997
Delivery time: immediately
Terms of Delivery: EX Works
Location: B - 4340 Awans
Controlversion: EC 100 A03
Screen text: German / Dutch
Operating hours: 66.984hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 800 kN
Size of mould platens (h x v): 730 mm x 600 mm
Distance between tie bars (h x v):  HL
Mould opening stroke: 500 mm
Mould height min.: 250 mm
Max daylight: 750 mm
Hydraulic ejector - stroke: 130 mm
Ejector force forward/backward: 40 kN
Injection unit
Screw diameter: 40 mm
L/D 17,5
Injection pressure: 1250 bar
Stroke volume: 201 ccm
Screw Stroke 160
Shot weight, PS: 183 g
Injection rate: 198 g /s
Screw speed: 320 1/min
Nozzle pressure: 47 kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 15 kW
Installed heating capacity: 9,2 kW
Adjustable barrel heating zones: 3+1
Reservoir capacity: 260 ltr.
Dimensions und weights
Dimensions of the machine ca.: 4,22 m x 1,5 m x 2,00 m
Total machine weight: 5200 kg
-Robot interface
Additional information
