Engel ES 330 / 80 HL
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 330 / 80 HL |
| Year: | 1996 |
| Delivery time: | immediately |
| Terms of Delivery: | EX Works |
| Location: | B - 4340 Awans |
| Controlversion: | EC 88 |
| Screen text: | Dutch |
| Operating hours: | 65.500 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 800 kN |
| Size of mould platens (h x v): | 660 mm x 560 mm |
| Distance between tie bars (h x v): | HL |
| Mould opening stroke: | 450 mm |
| Mould height min.: | 250 mm |
| Max daylight: | 700 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 25,4 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 35 mm |
| Injection pressure: | 1600bar |
| Stroke volume: | 154 ccm |
| Shot weight, PS: | 140 g |
| Screw Sroke | 160 mm |
| Injection rate: | 133 g /s |
| Screw speed: | 20 - 400 1/min |
| Nozzle pressure: | 47 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 18.5 kW |
| Installed heating capacity: | 9,2 kW |
| Adjustable barrel heating zones: | 3+1 |
| Reservoir capacity: | 185 + 45 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 6,00 m x 1,85 m x 2,00 m |
| Total machine weight: | 5300 kg |
| Accessories | |
|---|---|
| -1 x Core -Robot interface - Pneumatic Gate - Anti vibration pads - |
| Additional information | |
|---|---|

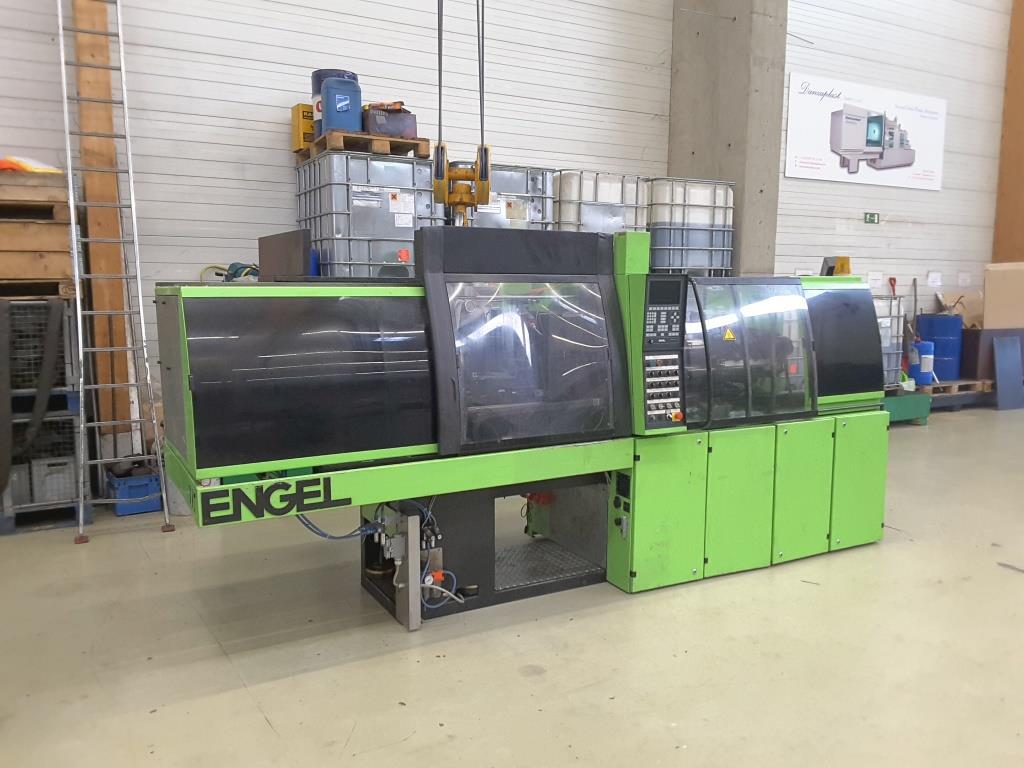

| Picture |
|---|
