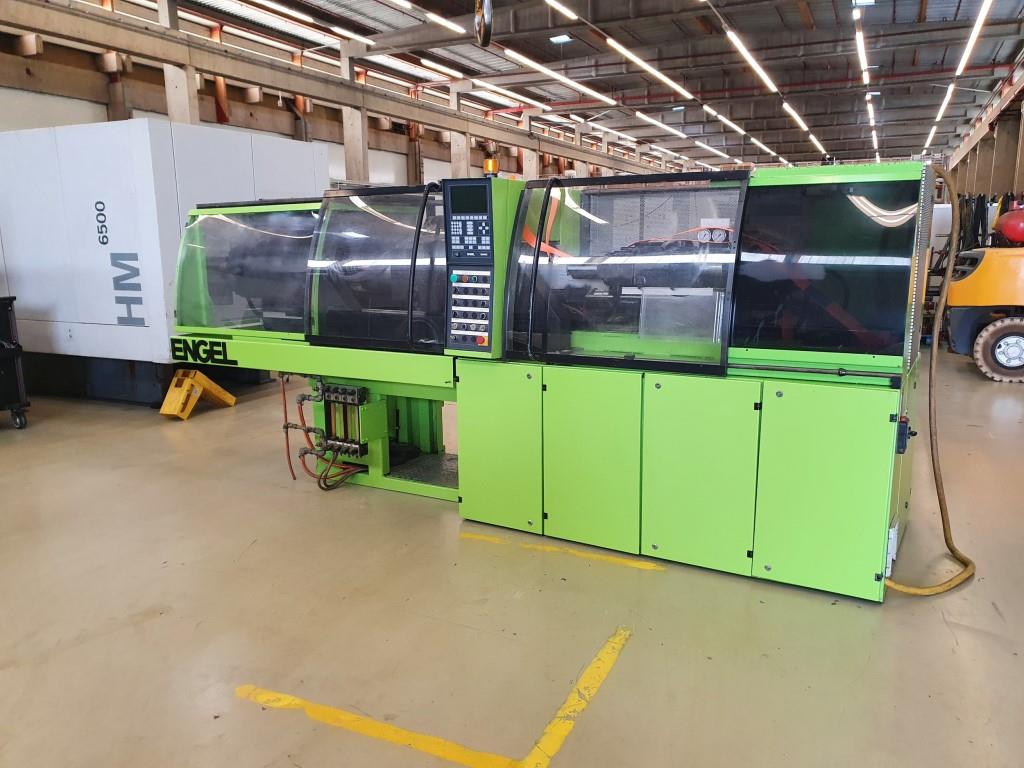

Engel ES 330 / 80 HL

Details
Manufacturer: Engel
Type of machine: ES 330 / 80 HL
Year: 1993
Delivery time: immediately
Terms of Delivery: EX Works
Location: B - 4340 Awans
Controlversion: EC 88 A02
Screen text: German
Operating hours:  hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 800 kN
Size of mould platens (h x v): 660 mm x 360 mm
Distance between tie bars (h x v):  HL
Mould opening stroke: 450 mm
Mould height min.: 250 mm
Max daylight: 700 mm
Hydraulic ejector - stroke: 100 mm
Ejector force forward/backward: 25,4 kN
Injection unit
Screw diameter: 45 mm
Injection pressure: 1300bar
Stroke volume: 254 ccm
Shot weight, PS:  228,6 g
Injection rate: 221 g /s
Screw speed: 20 - 230 1/min
Nozzle pressure: 47 kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 15 kW
Installed heating capacity: 9,2 kW
Adjustable barrel heating zones: 3+1
Reservoir capacity: 185 + 45 ltr.
Dimensions und weights
Dimensions of the machine ca.: 6,00 m x 1,85 m x 2,00 m
Total machine weight: 5300 kg
Accessories
- Anti vibration pads
- 1 x core
Additional information
