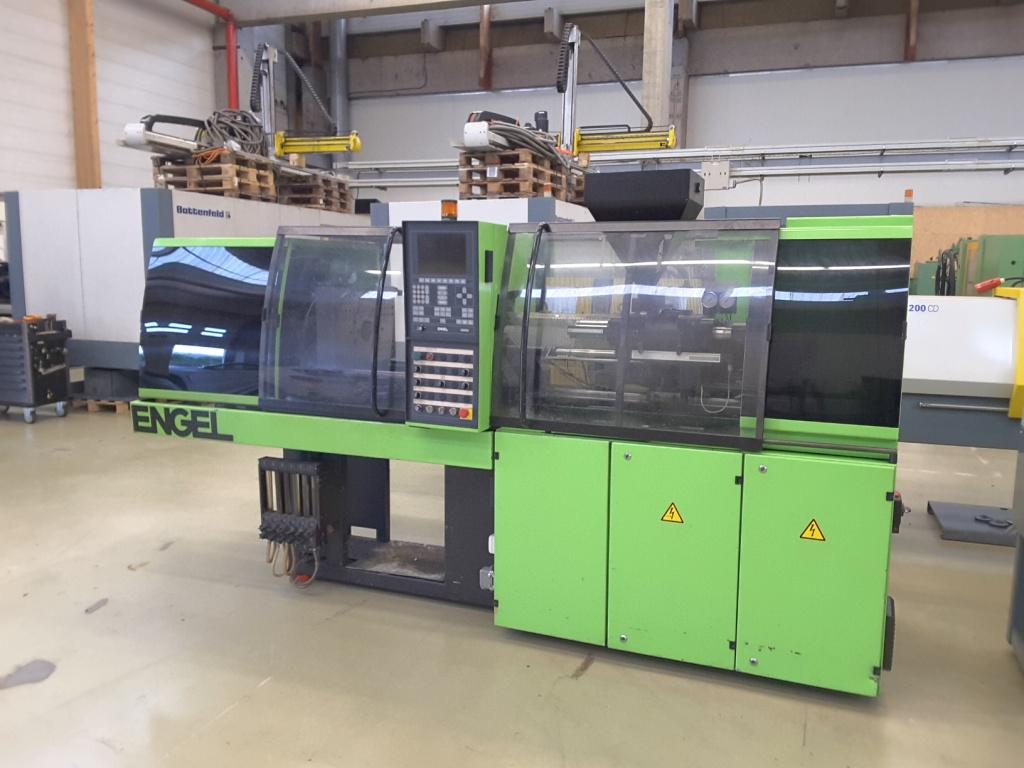

Engel ES 200 / 50 HL

Details
Manufacturer: Engel
Type of machine: ES 200 / 50 HL
Year: 1995
Delivery time: Now
Terms of Delivery: EX Works
Location: B - 4340 Awans
Controlversion: EC 88
Screen text: Dutch
Operating hours: 73.200 hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 500 kN
Size of mould platens (h x v): 550 mm x 430 mm
Distance between tie bars (h x v): HL
Mould opening stroke: 330 mm
Mould height min.: 190 mm
Max daylight: 520 mm
Hydraulic ejector - stroke: 100 mm
Ejector force forward/backward: 25,4 kN
Injection unit
Screw diameter: 30 mm
Injection pressure: 2200 bar
Stroke volume: 98 ccm
Shot weight, PS:  88 g
Injection rate: 13,3 cc /s
Screw speed: 20-480 1/min
Nozzle pressure: 28 kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 15 kW
Installed heating capacity: 6,8 kW
Adjustable barrel heating zones: 3+1
Reservoir capacity: 210 ltr.
Dimensions und weights
Dimensions of the machine ca.: 4,8 m x 1,5 m x 1,9 m
Total machine weight: 3.600 kg
Accessories
- Anti vibration pads
-
Additional information
- 1 x Core

-
