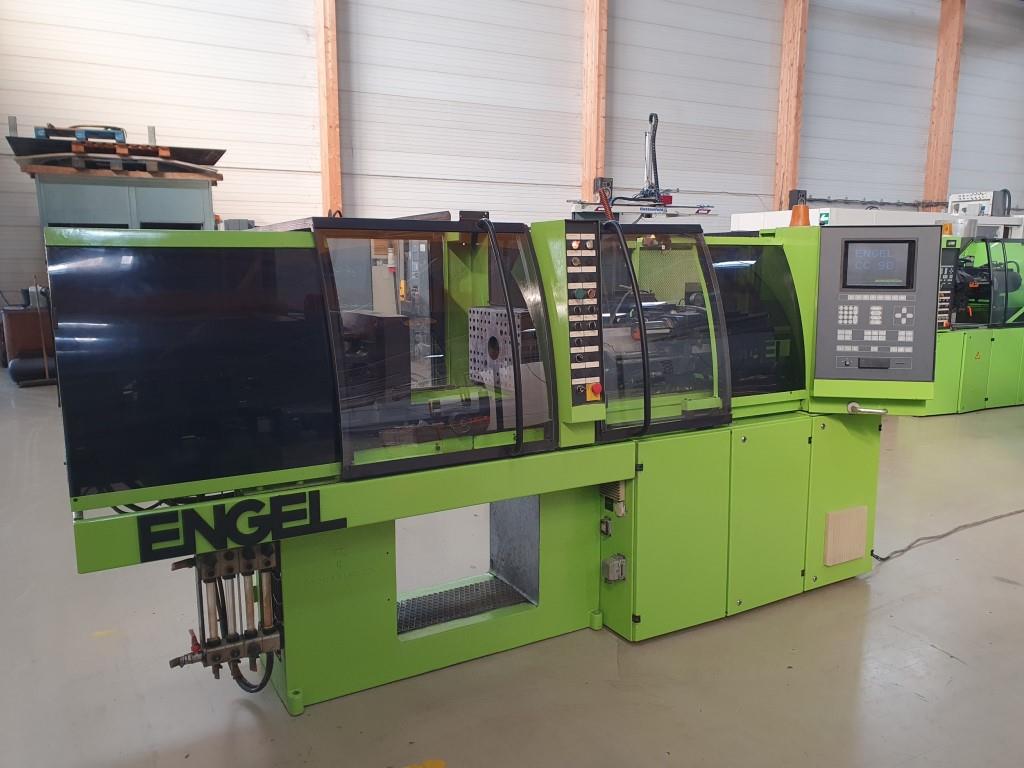

Engel ES 200 / 50 HL
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 200 / 50 HL |
| Year: | 1989 |
| Delivery time: | Now |
| Terms of Delivery: | EX Works |
| Location: | B - 4340 Awans |
| Controlversion: | CC 90 A02 |
| Screen text: | Dutch |
| Operating hours: | hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 500 kN |
| Size of mould platens (h x v): | 430 mm x 320 mm |
| Distance between tie bars (h x v): | HL |
| Mould opening stroke: | 330 mm |
| Mould height min.: | 150 mm |
| Max daylight: | 480 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 25,4 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 30 mm |
| Injection pressure: | 1450 bar |
| Stroke volume: | 98 ccm |
| Shot weight, PS: | 88 g |
| Injection rate: | 133 cc /s |
| Screw speed: | 20-480 1/min |
| Nozzle pressure: | 28 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 4,4 kW |
| Adjustable barrel heating zones: | 3+1 |
| Reservoir capacity: | 150 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,510 m x 1,21 m x 1,95 m |
| Total machine weight: | 3.300 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - 1 x Core - Robot Interface |
| Additional information | |
|---|---|
| - - |
|
Video Picture |
|---|
