Engel ES 200 / 40 HL
| Details |
| Manufacturer: | Engel |
| Type of machine: | ES 200 / 40 HL |
| Year: | 1990 |
| Delivery time: | Now |
| Terms of Delivery: | EX Works |
| Location: | B - 4340 Awans |
| Controlversion: | EC 88 A02 |
| Screen text: | Dutch |
| Operating hours: | hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 400 kN |
| Size of mould platens (h x v): | 510 mm x 320 mm |
| Distance between tie bars (h x v): | HL |
| Mould opening stroke: | 330 mm |
| Mould height min.: | 190 mm |
| Max daylight: | 520 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 25,4 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 25 mm |
| Injection pressure: | 2000 bar |
| Stroke volume: | 68 ccm |
| Shot weight, PS: | 61 g |
| Injection rate: | 93 g /s |
| Screw speed: | 20 - 480 1/min |
| Nozzle pressure: | 28 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 6,8 kW |
| Adjustable barrel heating zones: | 3+1 |
| Reservoir capacity: | 150 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,5 m x 1.3 m x 1,9 m |
| Total machine weight: | 3.600 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - 10 x Hotrunner controllers - |
| Additional information | |
|---|---|
| - |

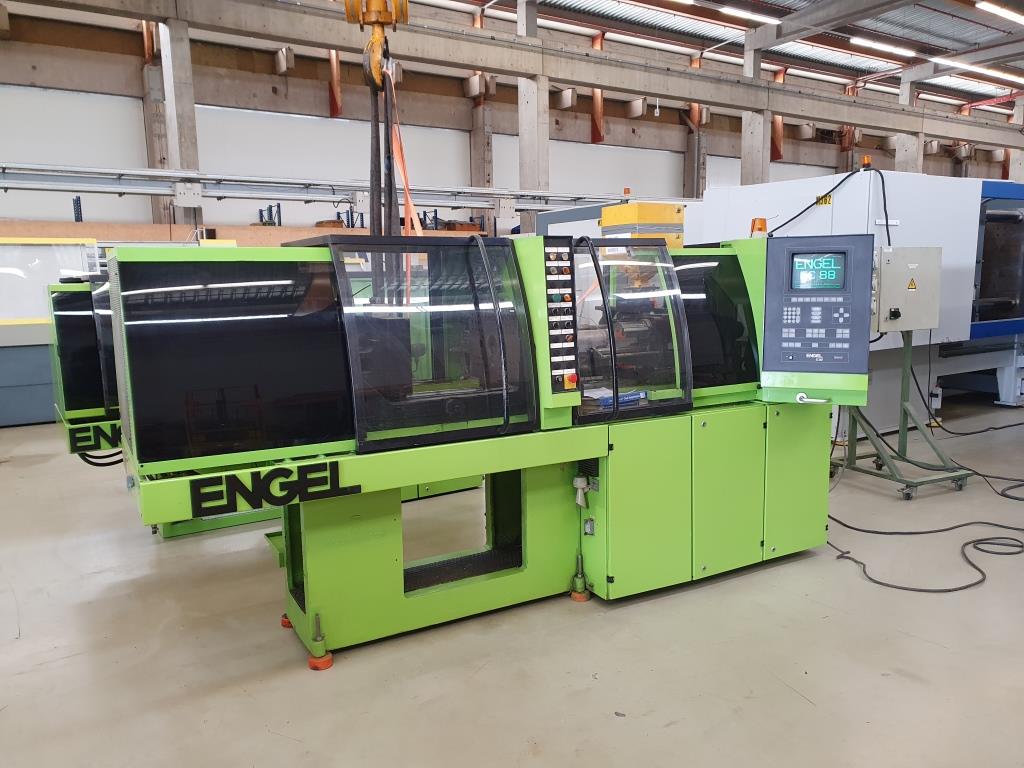

| Picture |
|---|
