Engel EM 740 / 225 T
| Details |
| Manufacturer: | Engel |
| Type of machine: | EM 740 / 225 T |
| Year: | 2009 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex - Works |
| Location: | Awans - Belgium |
| Controlversion: | CC 200 - A02 |
| Screen text: | German / Dutch |
| Operating hours: | 32.102 hrs. |
| Price: | On Request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2270 kN |
| Size of mould platens (h x v): | 900 mm x 900 mm |
| Distance between tie bars (h x v): | 600 mm x 600 mm |
| Mould opening stroke: | 530 mm |
| Mould height min.: | 250 mm |
| Mould height max.: | 560 mm |
| Max daylight: | 1090 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 70 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 50 mm |
| L / D | 20 |
| Injection pressure: | 2000 bar |
| Stroke volume: | 393 ccm |
| Shot weight, PS: | 353 g |
| Injection Speed | 346 cc / sec |
| Screw speed: | 300 r/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 110 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | kW |
| Installed heating capacity: | 4,5 kW |
| Adjustable barrel heating zones: | 4 + 1 |
| Dry cycle time: | 1,4 sec |
| Reservoir capacity: | ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 6,35 m x 1,9 m x 2,3 m |
| Total machine weight: | 13.000 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - |
| Additional information | |
|---|---|
| - 2 x airvalves -12 x Hotrunner controllers - Robot interface -
|

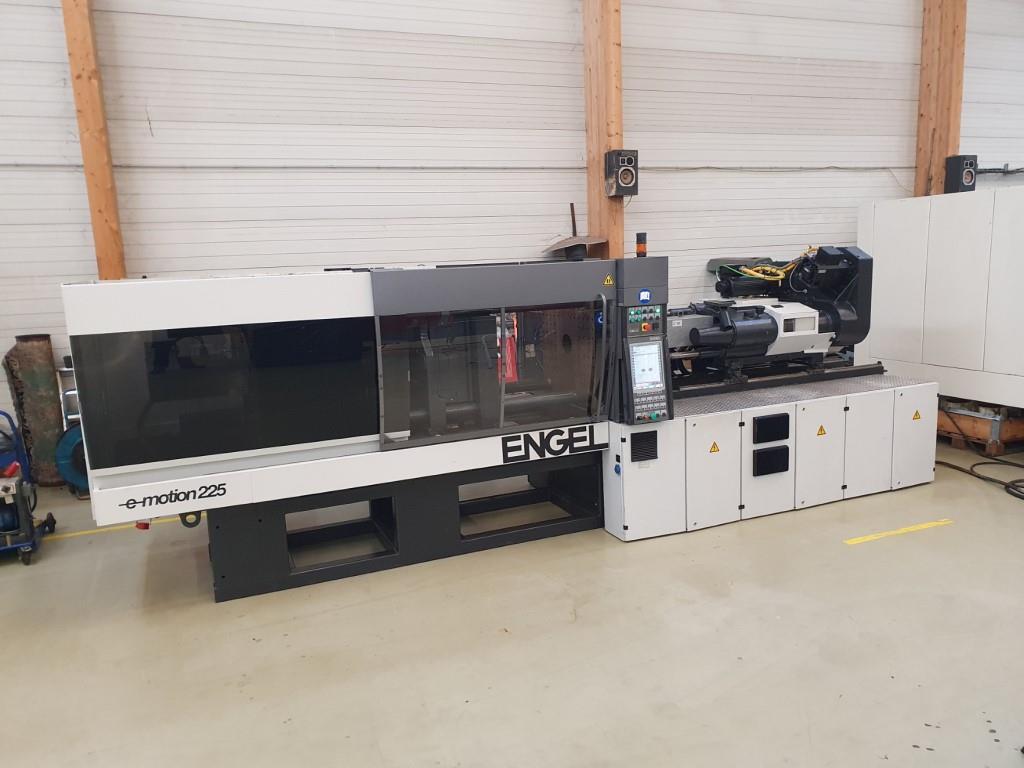

| Picture |
|---|
