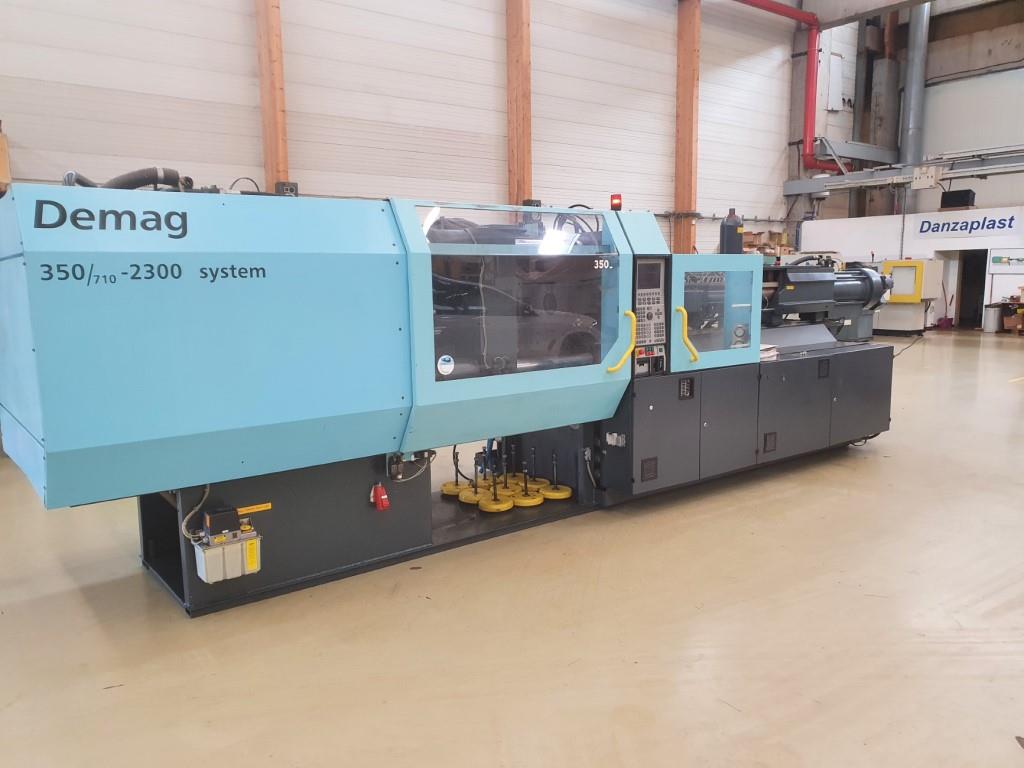

Demag Ergotech 350 / 710 - 2300 System
| Details |
| Manufacturer: | Demag Ergotech |
| Type of machine: | 350 / 710 - 2300 System |
| Year: | 2000 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | NC IV |
| Screen text: | Dutch |
| Operating hours: | 94.174 Hrs |
| Dry cycle | 1440 H-1 |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 3.500 KN |
| Mould opening force, max.: | |
| Size of mould platens (h x v): | 1040 mm x 950 mm |
| Distance between tie bars (h x v): | 710 mm x 630 mm |
| Mould opening stroke: | 675 mm |
| Mould height min.: | 330 mm |
| Max daylight: | 710 mm |
| Hydraulic ejector - stroke: | 200 mm |
| Ejector force forward/backward: | 69 kN |
| Injection unit 2300 | |
|---|---|
| Screw diameter: | 70 mm |
| Ls/D ratio: | 20 |
| Injection pressure: | 1877 bar |
| Screw Stroke | 315 mm |
| Stroke volume: | 1212 ccm |
| Shot weight, PS: | 1090 g |
| Injection rate: | 330 g/s |
| Screw speed: | m/min |
| Nozzle pressure: | 110 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 45 kW |
| Installed heating capacity: | 27 Kw |
| Reservoir capacity: | 700 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 6.5 m x 2,00 m x 2,30 m |
| Total machine weight: | 16.000 kg |
| Accessories | |
|---|---|
| - 2 x Core - 2x Pneumatik Valve - Robot Interface - Anti vibration pad |
| Additional information | |
|---|---|
| Picture |
|---|
