Demag Ergotech 1250 / 440 Concept
| Details |
| Manufacturer: | Demag |
| Type of machine: | Ergotech 1250 / 440 Concept |
| Year: | 2000 |
| Delivery time: | Now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC IV |
| Screen text: | Dutch / |
| Operating hours: | hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.250 kN |
| Size of mould platens (h x v): | 690 mm x 660 mm |
| Distance between tie bars (h x v): | 475 mm x 450 mm |
| Mould opening stroke: | 450 mm |
| Mould height min./ max: | 230 / 460 mm |
| Max daylight: | 910 mm |
| Hydraulic ejector - stroke: | 140 mm |
| Ejector force forward/backward: | 58 / 26 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 35 mm |
| Injection pressure: | 2423 bar |
| Stroke volume: | 177 ccm |
| Shot weight, PS: | 160 g |
| Screw Stroke | 184 mm |
| Injection rate: | ccm/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 80 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 7,9 kW |
| Dry cycle number: | 1830 1/h |
| Reservoir capacity: | 500 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| 4900 x 1600 x 2100 mm | |
| weight: | 6600 kg |
| Accessories |
|---|
| Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| - Robot interface - 1 x Core - -Separator - |
|

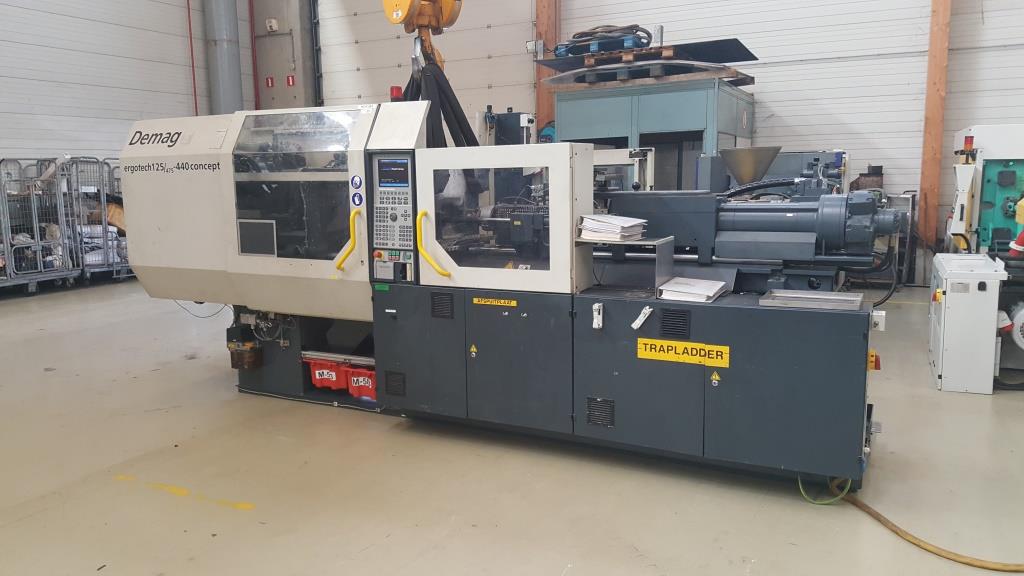

| Picture |
|---|
