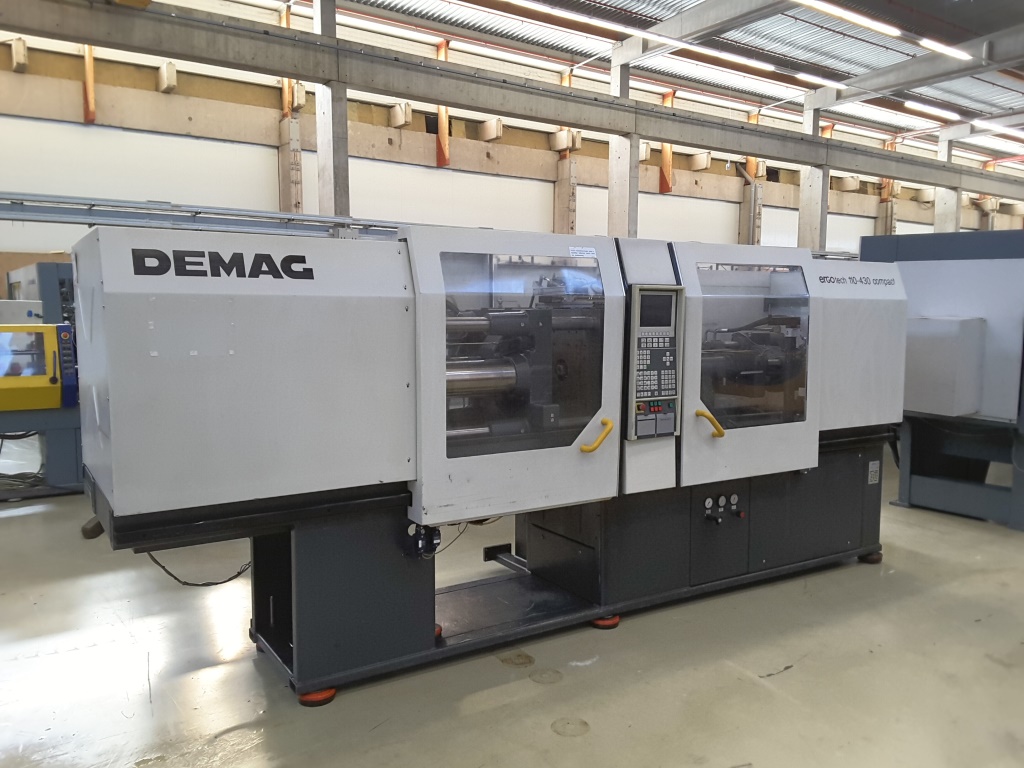

Demag  Ergotech 1100 - 430 Compact

Details
Manufacturer: Demag Ergotech
Type of machine: Compact 1100 - 430
Year: 1998
Delivery time: Now
Terms of Delivery: EX - Works
Location: Awans - Belgium
Controlversion: NC IV
Screen text: German
Operating hours: 69.500 hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 1.100 kN
Size of mould platens (h x v): 670 mm x 670 mm
Distance between tie bars (h x v): 450 mm x 450 mm
Mould opening stroke: 600 mm
Mould height min./ max: 250 / ....  mm
Max daylight: 850 mm
Hydraulic ejector - stroke: 180 mm
Ejector force forward/backward: 41,2 kN

Injection unit
Screw diameter: 40 mm
L / D 20
Injection pressure: 2020 bar
Stroke volume: 231,2 ccm
Shot weight, PS: 205 g
Injection rate:  ccm/s
Screw speed:  1/min
Plasticising rate max.:  g/s
Nozzle pressure:  60 kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 22 kW
Installed heating capacity: 11,1 kW
Dry cycle number:
Reservoir capacity: 250 ltr.
Dimensions und weights
Dimensions of the machine ca.: 4640 x 1500 x 2200 mm
                    Weight: 5.200 kg
Accessories
Wedge type anti-vibration pads
Additional information
- 1 x Core
-
