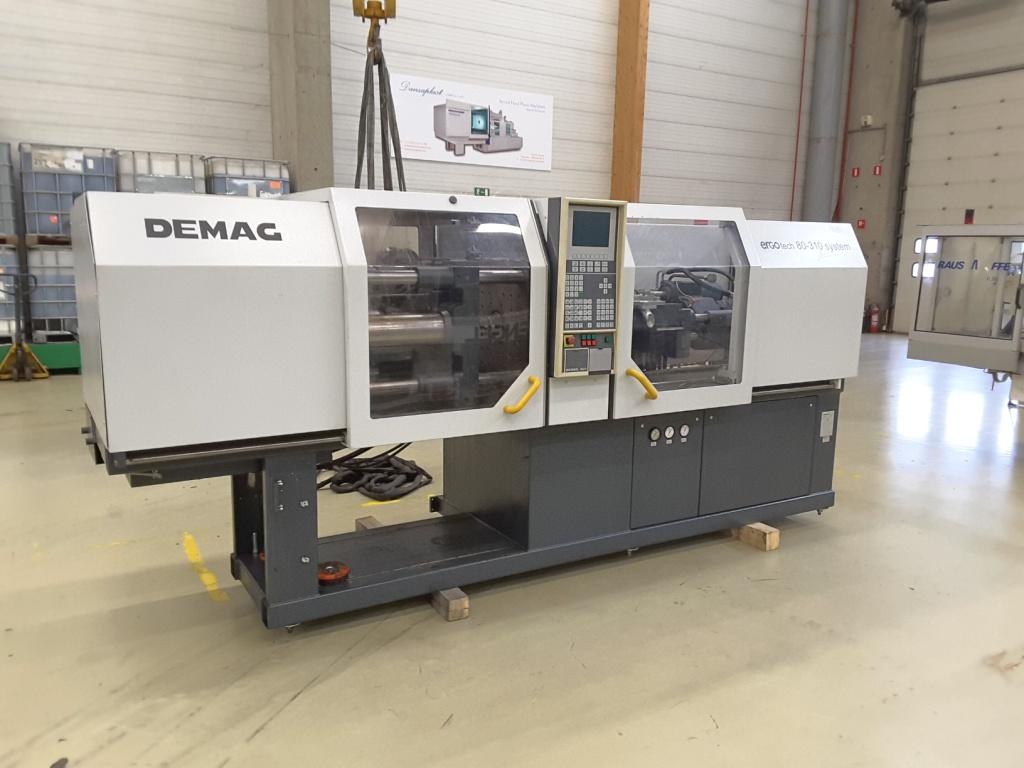

Demag  Ergotech 800 - 310 System

Manufacturer: Demag Ergotech
Type of machine: System 800 - 310
Year: 1995
Delivery time: Now
Terms of Delivery: EX - Works
Location: Awans - Belgium
Controlversion: NC IV
Screen text: German
Operating hours: 60.964 hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 800 kN
Size of mould platens (h x v): 580 mm x 590 mm
Distance between tie bars (h x v): 400 mm x 400 mm
Mould opening stroke: 450 mm
Mould height min./ max: 250 / ....  mm
Max daylight: 700 mm
Hydraulic ejector - stroke: 150 mm
Ejector force forward/backward: 41,2 kN
Injection unit
Screw diameter: 35 mm
L / D 20
Injection pressure: 2020 bar
Stroke volume: 168,3 ccm
Shot weight, PS: 149 g
Injection rate:  ccm/s
Screw speed:  1/min
Plasticising rate max.:  g/s
Nozzle pressure:  60 kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor:  kW
Installed heating capacity: 7,5 kW
Dry cycle number:
Reservoir capacity: 250 ltr.
Dimensions und weights
Dimensions of the machine ca.:
      3900 x 1400 x 1900 mm
                               weight: 3700 kg
Wedge type anti-vibration pads
Additional information
- Robot Interface Euromap 12
- 1 x Core
