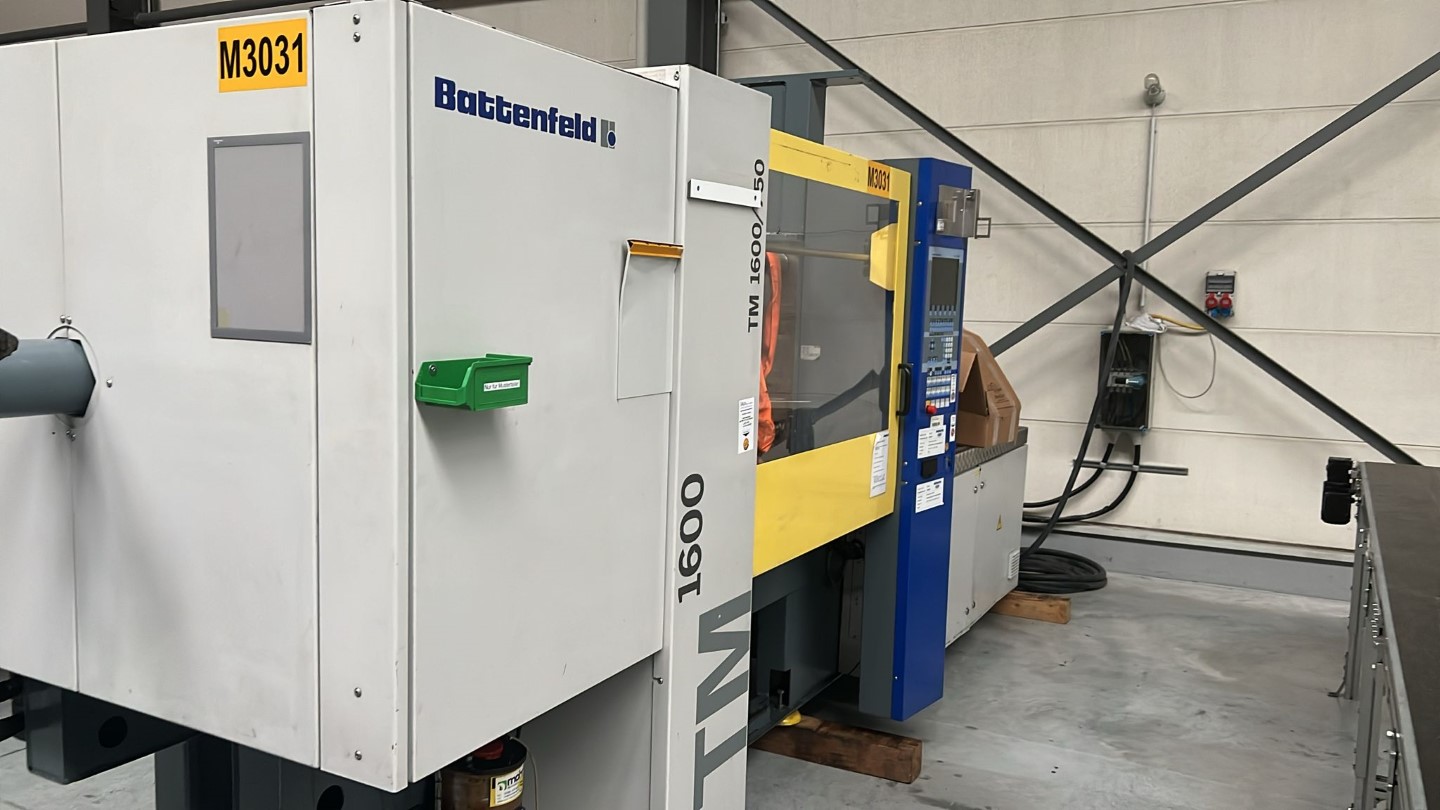

Battenfeld TM 1600 / 750

Details
Manufacturer: Battenfeld
Type of machine: TM 1600 / 750
Year: 2002
Delivery time: Now
Terms of Delivery: Ex Works
Location: Awans - Belgium
Controlversion: B 4
Screen text: German
Operating Hours Hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 1.600 kN
Size of mould platens (h x v): 750 mm x 750 mm
Distance between tie bars (h x v): 520 mm x 520 mm
Mould opening stroke: 480 mm
Mould height min.: 225 mm
Mould height max.: 550 mm
Max daylight: 1030 mm
Hydraulic ejector - stroke: 180 mm
Ejector force forward/backward: 41 kN
Injection unit
Screw diameter: 50 mm
Ls/D ratio: 22
Injection pressure: 2116 bar
Stroke volume: 442 ccm
Shot weight, PS: 397 g
Injection stroke: 225 mm
Screw speed: 0 - 291 1/min
Plasticising rate max.: 43 g/sec.
Nozzle pressure: 86 kN
Electric and Hydraulic Equipment
Installed heating capacity:  13,8 kW
Adjustable barrel heating zones: 1+3
Pump power 22 Kw
Oil 350 L




Dimensions und weights
Total machine weight: 6.400 kg
Dimensions        ( L x B x H ) 5,06 x 1,6 x 2,2 m
Accessories
- 2 x Core
- 6 x valve gating ( Cascade)
- 16 x Hotrunner controlleres

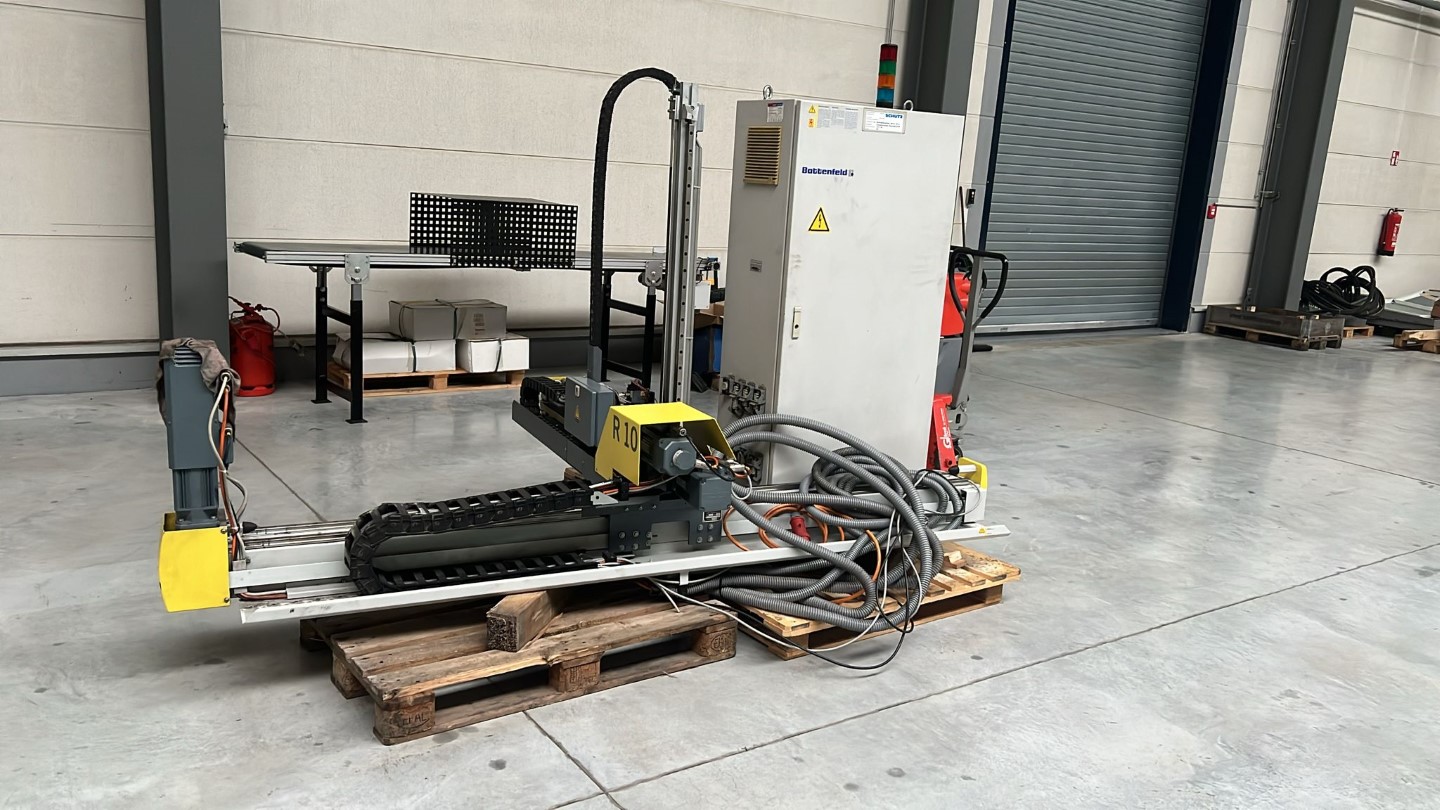

- Robot R 10 6 - 10 - 20
