| Battenfeld TM 1000 / 350 |
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | TM 1000 / 350 |
| Year: | 2001 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog B4 |
| Screen text: | Dutch |
| Operating hours: | 85.510 hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.000 kN |
| Size of mould platens (h x v): | 640 mm x 640 mm |
| Distance between tie bars (h x v): | 420 mm x 420 mm |
| Mould opening stroke: | 380 mm |
| Mould height min.: | 200 mm |
| Mould height max.: | 450 mm |
| Max daylight: | 830 mm |
| Hydraulic ejector - stroke: | 140 mm |
| Ejector force forward/backward: | 26 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 1595 bar |
| Stroke volume: | 220 ccm |
| Shot weight, PS: | 198 g |
| Injection stroke: | 175 mm |
| Screw speed: | 298 1/min |
| Plasticising rate max.: | 28,5 g/s |
| Nozzle pressure: | 86 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 15 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 15 Kw |
| Oil | 250 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 4.300 kg |
| Dimensions ( L x B x H ) | 4,1 x 1,4 x 2,0 m |
| Accessories | |
|---|---|
| - 1 x Core Hydraulic - 1 x Core Pneumatic -Anti vibration pads - Hopper - |
| Additional information | |
|---|---|

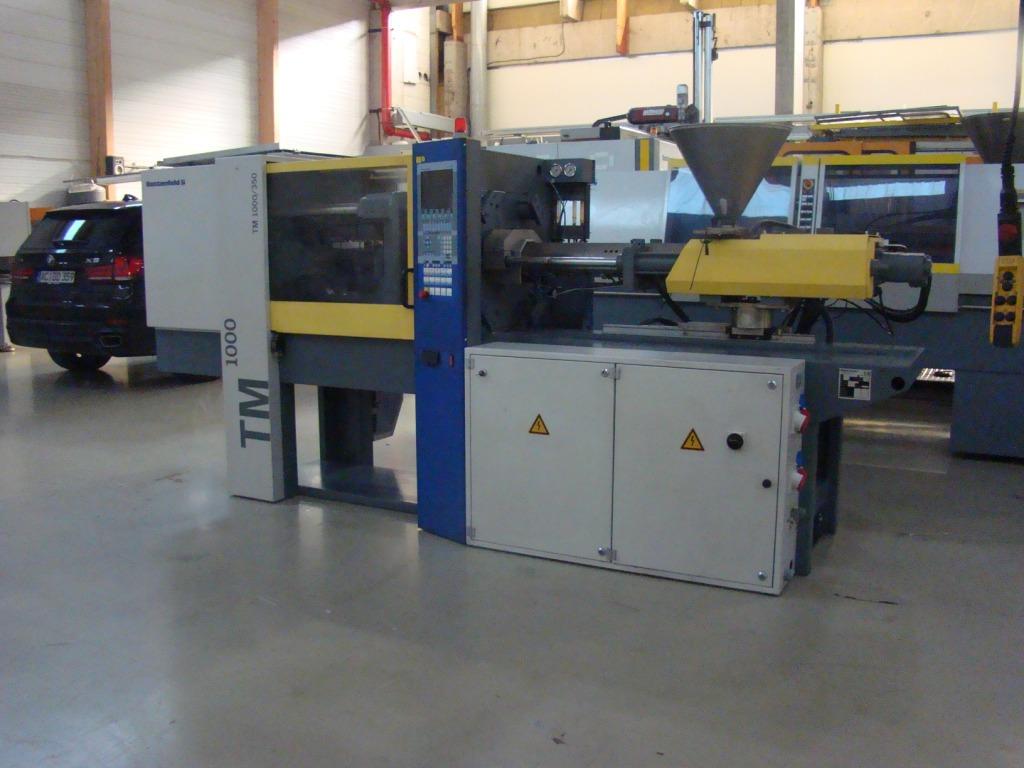

| Picture |
|---|
