| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BP - H 1000 |
| Year: | 1994 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 4000 B |
| Screen text: | German |
| Operating hours: | 711 hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.000 kN |
| Size of mould platens (h x v): | 600 mm x 500 mm |
| Distance between tie bars (h x v): | 500 mm x 400 mm |
| Mould opening stroke: | 300 mm |
| Mould height min.: | 305 mm |
| Mould height max.: | 450 mm |
| Max daylight: | 870 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 30 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 11 kW |
| Installed heating capacity: | 2 x 3,5 Kw |
| Adjustable heating zones: | 2 |
| Reservoir capacity: | 240 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 2,4 m x 1,3 m x 2,7 m |
| Total machine weight: | 4200 kg |
| Accessories | |
|---|---|
| - Anti vibration |
| Additional information | |
|---|---|
| - |

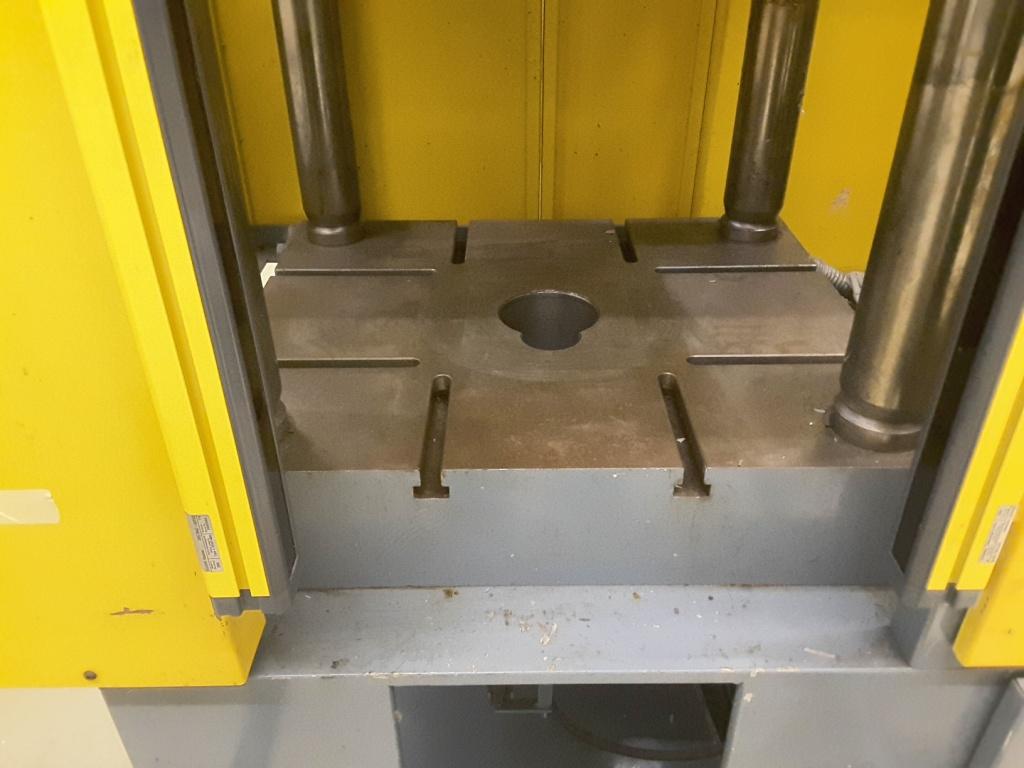

| Picture |
|---|
