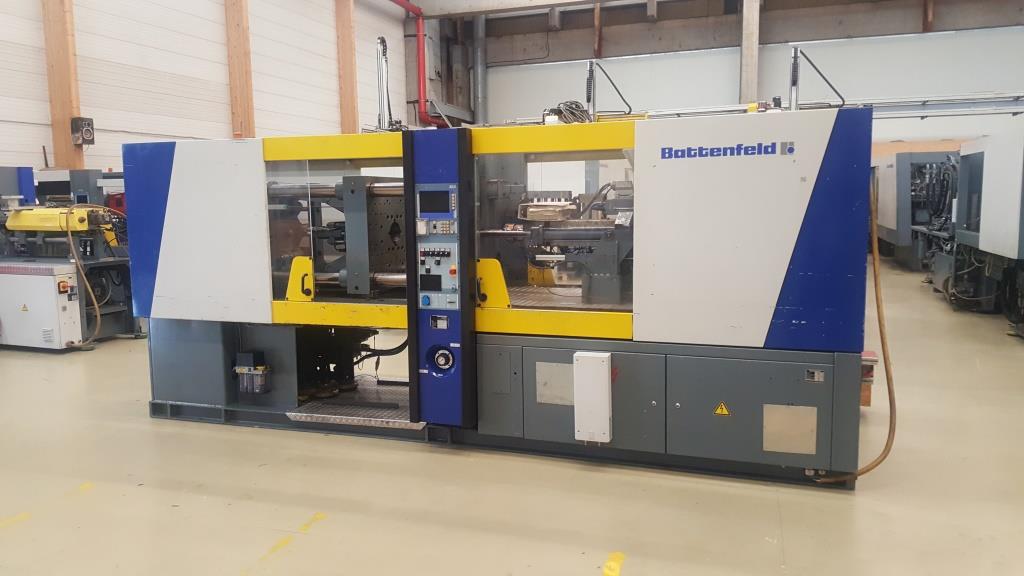

Battenfeld BK-T 1800 / 630
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BK-T 1800 / 630 |
| Year: | 1994 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 4000 B |
| Screen text: | German |
| Operating hours: | hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1800 kN |
| Size of mould platens (h x v): | 800 mm x 800 mm |
| Distance between tie bars (h x v): | 515 mm x 515 mm |
| Mould opening stroke: | 450 mm |
| Mould height min.: | 200 mm |
| Mould height max.: | 500 mm |
| Max daylight: | 950 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | 54 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 50 mm |
| Ls/D ratio: | 18 |
| Injection pressure: | 1767 bar |
| Stroke volume: | 353,4 ccm |
| Shot weight, PS: | 321 g |
| Screw speed: | 280 1/min |
| Plasticising rate max.: | 38 g/s |
| Nozzle pressure: | 79,2 KN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 11,2 kW |
| Adjustable barrel heating zones: | |
| Reservoir capacity: | 300 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 5,46 m x 1,4 m x 2,1 m |
| Total machine weight: | 8000 kg |
| Accessories | |
|---|---|
| - Anti vibration -1 x Cores - Robot interface Euromap 12 - |
| Additional information | |
|---|---|
| - |
 |
|---|
