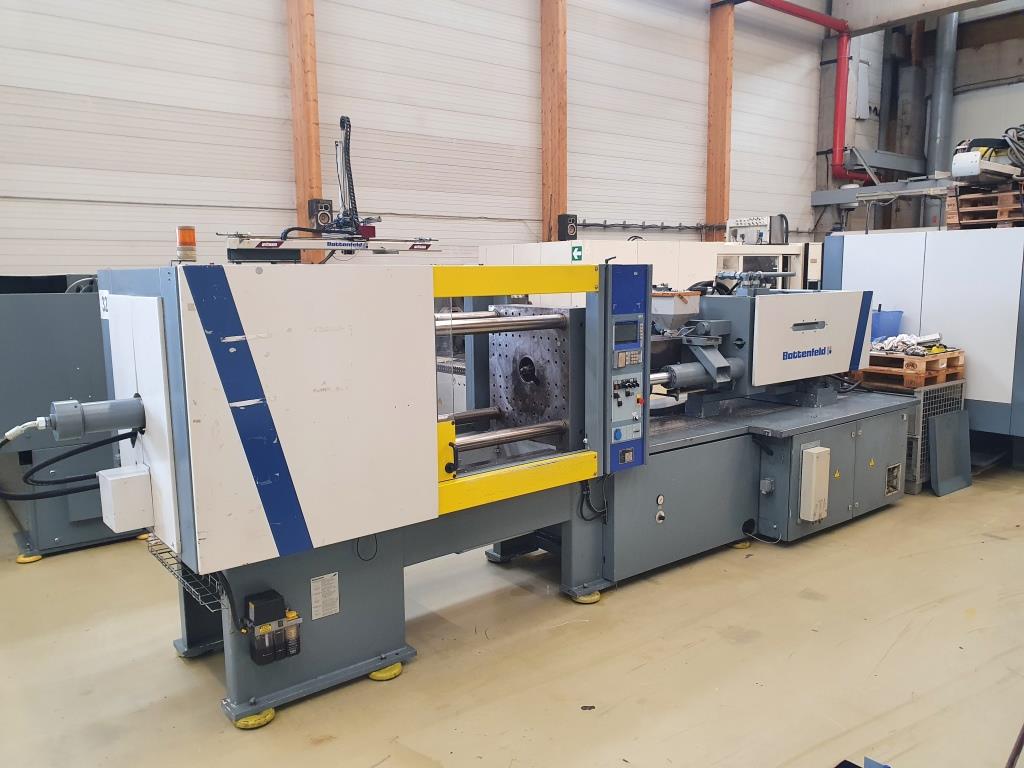

Battenfeld BK-T 1800 / 1000



Manufacturer: Battenfeld
Type of machine: BK-T 1800 / 1000
Year: 1994
Delivery time: Immediately
Terms of Delivery: Ex Works
Location: Awans - Belgium
Controlversion: Unilog 4000 B
Screen text: German
Operating hours:  hrs
Price: on request

Technical details

Clamping unit
Clamping force: 1800 kN
Size of mould platens (h x v): 800 mm x 800 mm
Distance between tie bars (h x v): 560 mm x 560 mm
Mould opening stroke: 450 mm
Mould height min.: 200 mm
Mould height max.: 500 mm
Max daylight: 950 mm
Hydraulic ejector - stroke: 160 mm
Ejector force forward/backward: 67 kN
Injection unit
Screw diameter: 55 mm
Ls/D ratio: 20
Injection pressure: 1874 bar
Stroke volume: 522 ccm
Shot weight, PS: 475 g
Screw speed: 220 1/min
Plasticising rate max.: 41 g/s
Nozzle pressure: 187,6 KN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 30 kW
Installed heating capacity: 15,6 kW
Adjustable barrel heating zones:
Reservoir capacity: 380 ltr.
Dimensions und weights
Dimensions of the machine ca.: 6,85 m x 1,66 m x 2,1 m
Total machine weight: 9600 kg
- Anti vibration
-1 x Cores
- Robot interface  Euromap 12
Additional information
