| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BK-T 1300 / 315 |
| Year: | 1989 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 4000 B |
| Screen text: | German |
| Operating hours: | hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1300 kN |
| Size of mould platens (h x v): | 600 mm x 600 mm |
| Distance between tie bars (h x v): | 400 mm x 400 mm |
| Mould opening stroke: | 420 mm |
| Mould height min.: | 220 mm |
| Mould height max.: | 400 mm |
| Max daylight: | 820 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | 67 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 45 mm |
| Ls/D ratio: | 17.8 |
| Injection pressure: | 1244 bar |
| Stroke volume: | 254,4 ccm |
| Shot weight, PS: | 231,5 g |
| Screw speed: | 150 - 280 1/min |
| Plasticising rate max.: | 26 - 38 g/s |
| Nozzle pressure: | 79,2 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 9 kW |
| Adjustable barrel heating zones: | 4 |
| Reservoir capacity: | 180 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 5,30 m x 1,25 m x 2,1 m |
| Total machine weight: | 5960 kg |
| Accessories | |
|---|---|
| - Anti vibration |
| Additional information | |
|---|---|
| - Robot interface |

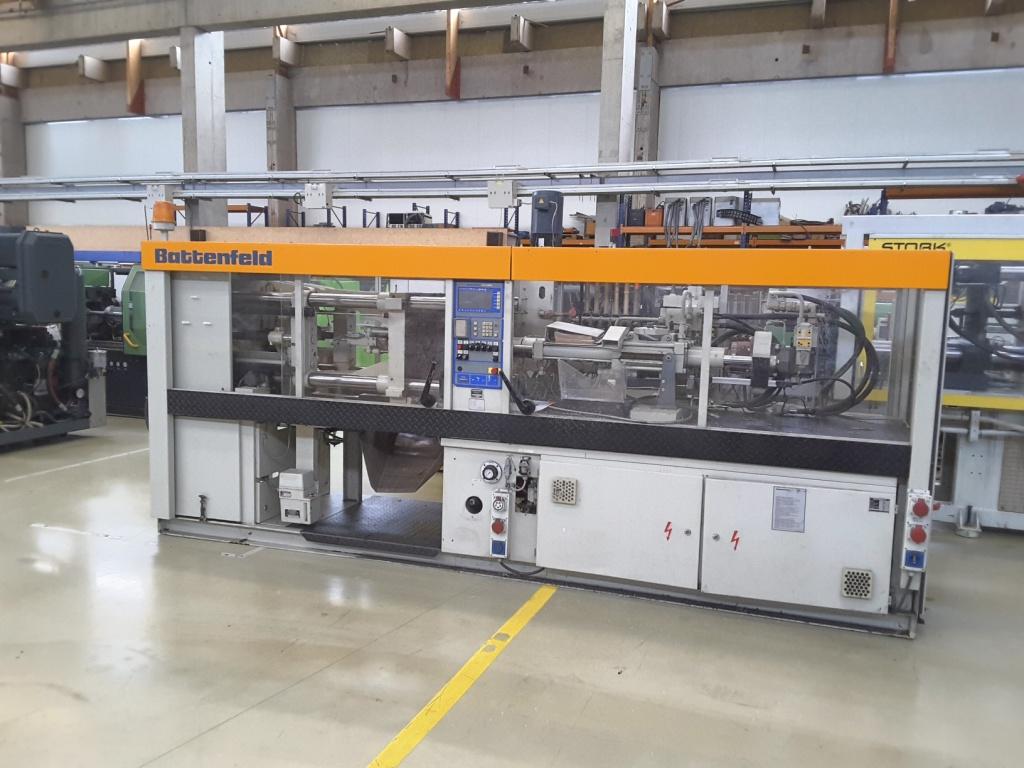

| Picture |
|---|
