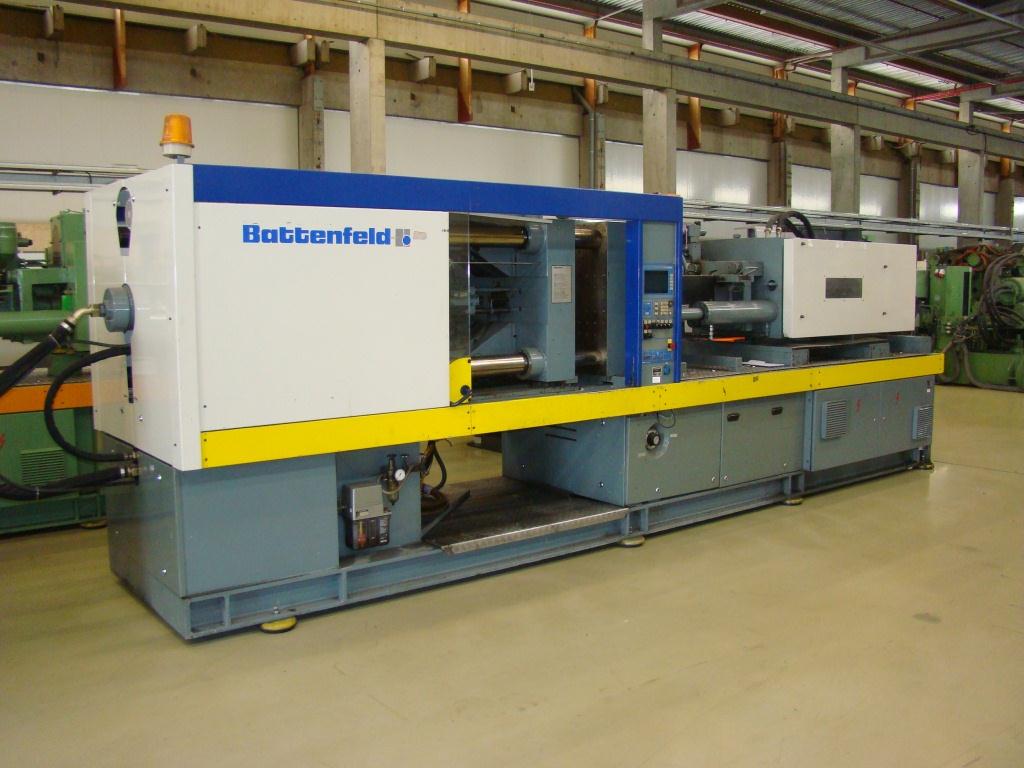

Battenfeld BK-T 2500 - 800
| Manufacturer: |
Battenfeld |
| Type of machine: |
BK-T 2500 / 800 |
| Year: |
1990 |
| Delivery time: |
Immediately |
| Terms of Delivery: |
EX - Works |
| Location: |
Awans - Belgium |
| Controlversion: |
Unilog 4000 |
| Screen text: |
German |
| Operating hours: |
55.482 Hrs |
| Price: |
On Request |
Technical details
| Clamping unit |
| Clamping force: |
2500 kN |
| Size of mould platens (h x v): |
900 mm x 900 mm |
| Distance between tie bars (h x v): |
580 mm x 580 mm |
| Mould opening stroke: |
550 mm |
| Mould height min.: |
250 mm |
| Mould height max.: |
600 mm |
| Max daylight: |
1150 mm |
| Ejector Stroke |
160 mm |
| Ejector force |
54 Kn |
| |
|
| Injection unit |
| Screw diameter: |
60 mm |
| Screw Stroke |
220 mm |
| Injection pressure: |
1260 bar |
| Stroke volume: |
622 ccm |
| Shot weight, PS: |
566 g |
| Electric and Hydraulic Equipment |
| Nominal capacity of pump motor: |
30 kW |
| Installed heating capacity: |
15.6 kW |
| Dry cycle number: |
2.7 sec |
| Reservoir capacity: |
350 ltr. |
|
| Dimensions und weights |
| Dimensions of the machine ca.: |
7,64 m x 1,36 m x 2,15 m |
| Total machine weight: |
12.850 kg |
| Accessories |
| - Robot Interface Euromap 12 |
| - 1 x Core |
| |
|
