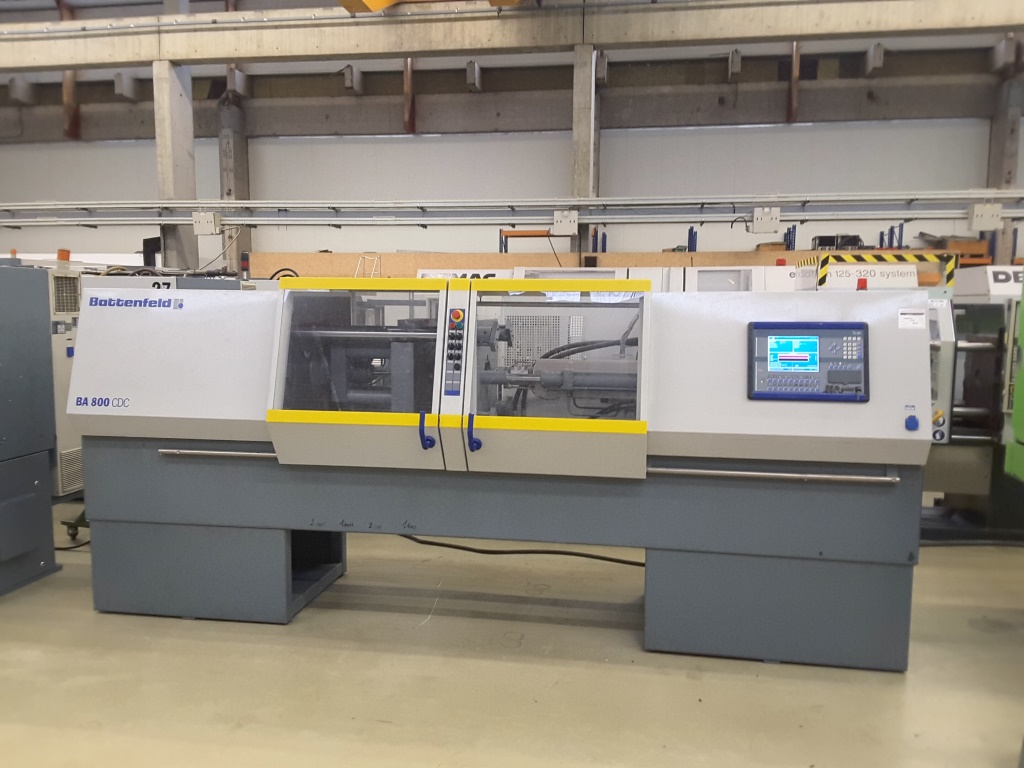

Battenfeld BA 800 - 315 CDC
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 800 - 315 CDC |
| Year: | 1996 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | TC 40 |
| Screen text: | Dutch / German / Englisch |
| Operating Hours | 19.121 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 800 kN |
| Size of mould platens (h x v): | 590 mm x 590 mm |
| Distance between tie bars (h x v): | 370 x 370 mm |
| Mould opening stroke: | 425 mm |
| Mould height min.: | 200 mm |
| Mould height max.: | mm |
| Max daylight: | 625 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 27,5 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 35 mm |
| Ls/D ratio: | 22,9 |
| Injection pressure: | 2057 bar |
| Stroke volume: | 153 ccm |
| Shot weight, PS: | 140 g |
| Injection stroke: | 160 mm |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 79,2 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 9 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 15 Kw |
| Oil | 200 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 3.800 kg |
| Dimensions ( L x B x H ) | 4,2 x 1,46 x 1,93 m |
| Accessories | |
|---|---|
| - Anti vibration pads - Shut off nozle |
| Additional information | |
|---|---|
| - - |
