Battenfeld BA 750 CD Plus
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 750 /315 CD Plus |
| Year: | 1991 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 4000 |
| Screen text: | Greman |
| Operating Hours | 59.560 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 750 kN |
| Size of mould platens (h x v): | 640 mm x 540 mm |
| Distance between tie bars (h x v): | 404 mm x 304 mm |
| Mould opening stroke: | 475 mm |
| Mould height min.: | 250 mm |
| Mould height max.: | - mm |
| Max daylight: | 625 mm |
| Hydraulic ejector - stroke: | 16 mm |
| Ejector force forward/backward: | 17,5 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| Ls/D ratio: | 20 |
| Injection pressure: | 1575 bar |
| Stroke volume: | 201 ccm |
| Shot weight, PS: | 182,9 g |
| Injection stroke: | 160 mm |
| Screw speed: | 335 1/min |
| Plasticising rate max.: | 25,7 g/s |
| Nozzle pressure: | 79,2 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 7,88 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 15 Kw |
| Oil | 195 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 3000 kg |
| Dimensions ( L x B x H ) | 3,9 x 1,9 x 2,1 m |
| Accessories | |
|---|---|
| - Anti vibration pads - Hopper |
| Additional information | |
|---|---|
| - 1 x Air valve - 2 x Core - Robot Interface - 4-fold Waterbattery |

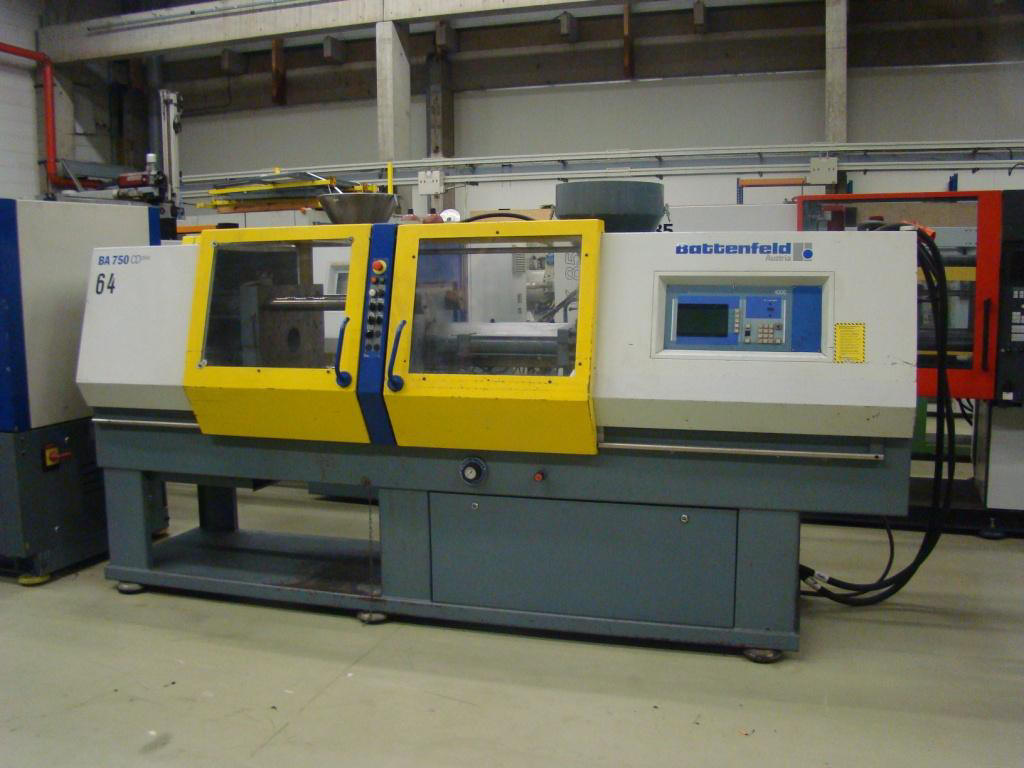

| Picture |
|---|
