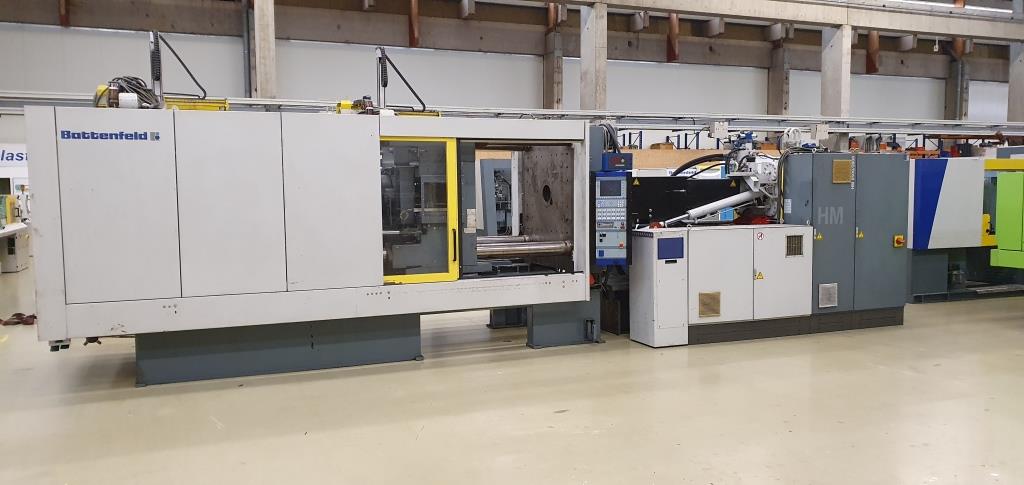

Battenfeld BA 6500 - 2800 HM 9000C

Details



Manufacturer: Battenfeld
Type of machine: BA 6500 - 2800 HM
Year: 1999
Delivery time: now
Terms of Delivery: Ex Works
Location: Awans - Belgium
Controlversion: Unilog 9000 C
Screen text: German / English
Operating hours:  hrs
Price: on request

Technical details

Clamping unit
Clamping force: 6.500 kN
Size of mould platens (h x v): 1.400 mm x 1.400 mm
Distance between tie bars (h x v): 1000 mm x 1000 mm
Mould opening stroke: 800 mm
Mould height min.: 500 mm
Mould height max.: 1.100 mm
Max daylight: 1.900 mm
Hydraulic ejector - stroke: 200 mm
Ejector force forward/backward: 98 kN
Injection unit
Screw diameter: 85 mm
Ls/D ratio: 22
Injection pressure: 1.354 bar
Stroke volume: 2.128 ccm
Shot weight, PS: 1.936 g
Screw speed: 2251/min
Plasticising rate max.: 93 g/s
Nozzle pressure: 164 kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 55 kW
Installed heating capacity: 48,5 kW
Adjustable barrel heating zones:
Reservoir capacity: 800 ltr.
Dimensions und weights
Dimensions of the Injection ca.: 5,43 m x 2,2 m x 2,4 m
 weight:  10.000 kg

Dimensions of the Clamp Unit  ca.: 5,81 m x 2,31 m x 2,42 m
Total machine weight: 30.000 kg
s
Accessories
- Anti vibration
- 4 x Cores
- 6 x Moldmaster
- 16 x Hotrunner controllers
- Robot interface Euromap 12
-

-
