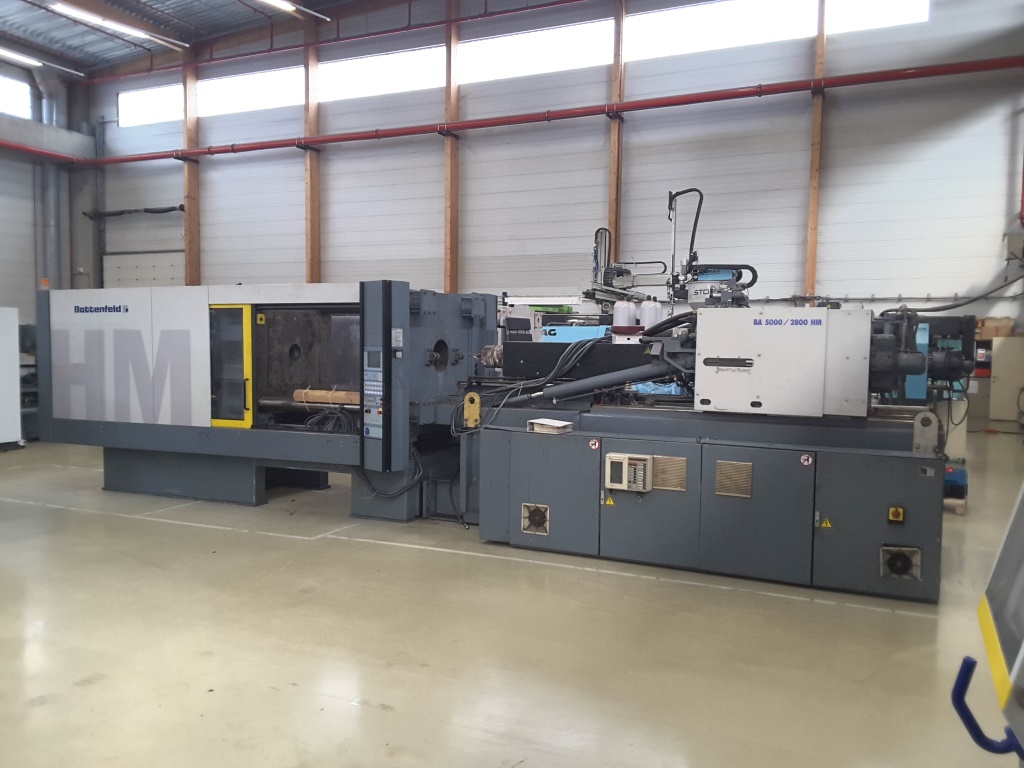

Battenfeld BA 5000 - 2800 HM 9000C

Details



Manufacturer: Battenfeld
Type of machine: BA 5000 - 2800 HM
Year: 1996
Delivery time: now
Terms of Delivery: Ex Works
Location: Awans - Belgium
Controlversion: Unilog 9000 C
Screen text: German
Operating hours: 40.239 hrs
Price: on request

Technical details

Clamping unit
Clamping force: 5.000 kN
Size of mould platens (h x v): 1.280 mm x 1.280 mm
Distance between tie bars (h x v): 900 mm x 900 mm
Mould opening stroke: 900 mm
Mould height min.: 450 mm
Mould height max.: 800 mm
Max daylight: 1.700 mm
Hydraulic ejector - stroke:  200 mm
Ejector force forward/backward:  98 kN
Injection unit
Screw diameter: 75 mm
Ls/D ratio: 22
Injection pressure: 1508 bar
Stroke volume: 1657 ccm
Shot weight, PS: 1508 g
Screw speed: 1/min
Plasticising rate max.: 73 g/s
Nozzle pressure:  kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 55 kW
Installed heating capacity: 43 kW
Adjustable barrel heating zones:
Reservoir capacity:  ltr.
Dimensions und weights
Dimensions of the Injection ca.: 4,5 m x 2,2 m x 2,4 m
 weight: 8.500 kg

Dimensions of the Clamp Unit  ca.: 4,74 m x 2,2 m x 2,6 m
Total machine weight: 23.100 kg
Accessories
- Anti vibration
- 2 x Cores
- Robot interface Euromap 12
- 1 x Air valve
- 6 x Hotrunner controllers
-
