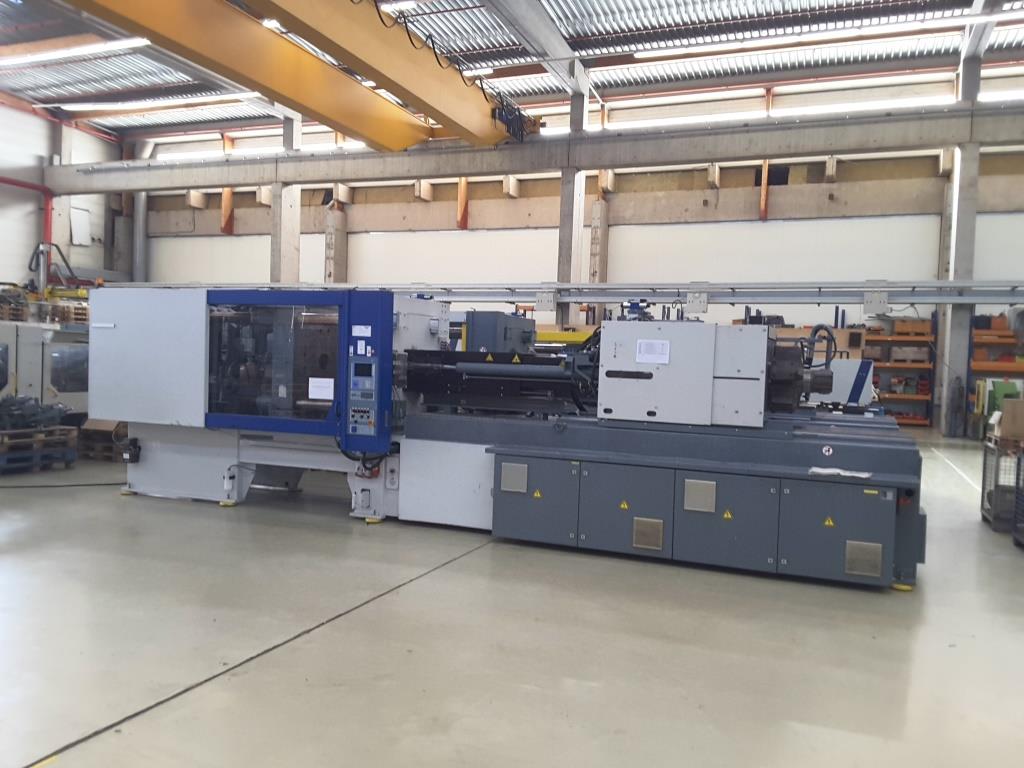

Battenfeld BA 4500 / 4500 BK
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 4500 / 4500 BK |
| Year: | 1999 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 4000 B |
| Screen text: | German |
| Operating hours: | 50.462 hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 4500 kN |
| Size of mould platens (h x v): | 1120 mm x 1120 mm |
| Distance between tie bars (h x v): | 800 mm x 800 mm |
| Mould opening stroke: | 760 mm |
| Mould height min.: | 300 mm |
| Mould height max.: | 770 mm |
| Max daylight: | 1530 mm |
| Hydraulic ejector - stroke: | 250 mm |
| Ejector force forward/backward: | 87 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 85 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 1860 bar |
| Stroke volume: | 2412 ccm |
| Shot weight, PS: | 2195 g |
| Screw speed: | 190 1/min |
| Plasticising rate max.: | 106 g/s |
| Nozzle pressure: | 154 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | kW |
| Installed heating capacity: | 48,5 kW |
| Adjustable barrel heating zones: | 1 + 6 |
| Reservoir capacity: | 800 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 9.55 m x 1,85 m x 2,34 m |
| Total machine weight: | 21.700 kg |
| Accessories | |
|---|---|
| - Anti vibration -3 x Core -1 x Air valve -Robot interface Euromap 12 - |
| Additional information | |
|---|---|
| - |
