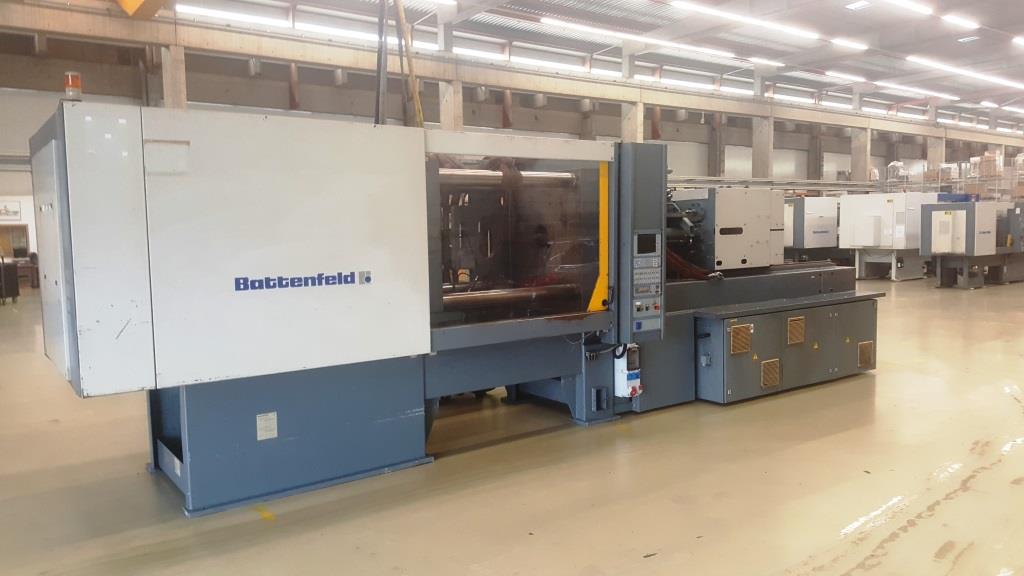

Battenfeld BA 4500 / 1900 HM U 9000 C
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 4500/1900 HM |
| Year: | 1998 |
| Delivery time: | Immediately |
| Terms of Delivery: | Now |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 9000 C |
| Screen text: | German / |
| Operating Hours | 83.661 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 4.500 kN |
| Size of mould platens (h x v): | 1120 mm x 1120 mm |
| Distance between tie bars (h x v): | 800 x 800 mm |
| Mould opening stroke: | 760 mm |
| Mould height min.: | 270 mm |
| Mould height max.: | 770 mm |
| Max daylight: | 1530 mm |
| Hydraulic ejector - stroke: | mm |
| Ejector force forward/backward: | kN |
|
||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 22,7 |
| Adjustable barrel heating zones: | |
| Pump power | 45 Kw |
| Oil | 660 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 19.100 kg |
| Dimensions ( L x B x H ) | 7,8 x 2,1 x 2,4 m |
| Accessories | |
|---|---|
| - Robot interface Euromap 12 - 4 x cores - - Air Valve |
| Additional information | |
|---|---|
| - - |
| Picture |
|---|
