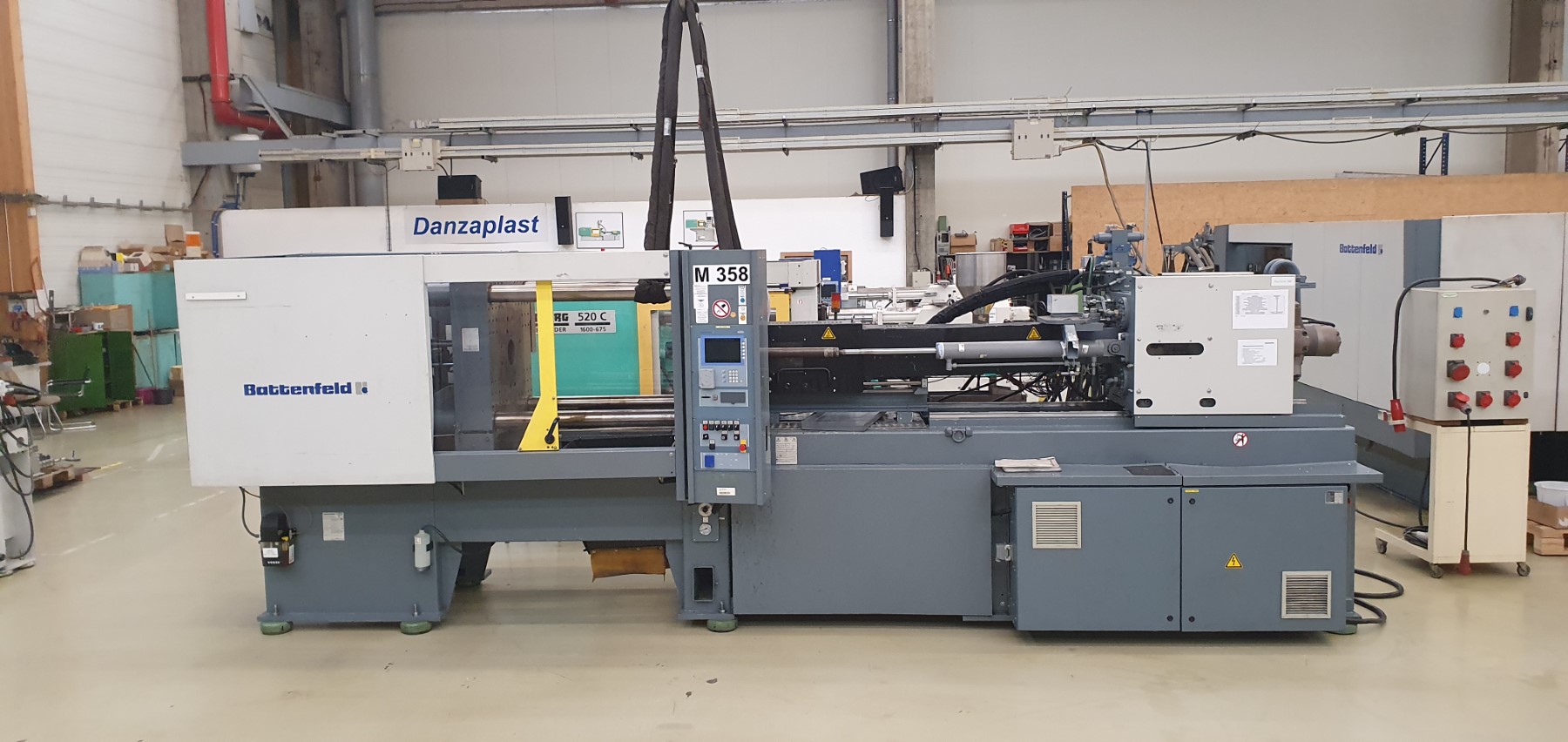

Battenfeld BA 2700 / 1200 BK U 4000
Details



Manufacturer: Battenfeld
Type of machine: BA 2700 / 1200 BK
Year: 1999
Delivery time: Immediately
Terms of Delivery: Ex Works
Location: Awans - Belgium
Controlversion: Unilog 4000
Screen text: German
Operating hours: hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 2.700 kN
Size of mould platens (h x v): 900 mm x 900 mm
Distance between tie bars (h x v): 630 mm x 630 mm
Mould opening stroke: 550 mm
Mould height min.: 250 mm
Mould height max.: 630 mm
Max daylight: 1170 mm
Hydraulic ejector - stroke: 160 mm
Ejector force forward/backward: 67 kN
Injection unit
Screw diameter: 65 mm
Ls/D ratio: 22
Injection pressure: 1305 bar
Stroke volume: 913 ccm
Shot weight, PS: 830 g
Injection stroke: 275 mm
Screw speed: 233 1/min
Plasticising rate max.: 63 g/s
Nozzle pressure: 140 kN
Electric and Hydraulic Equipment
Installed heating capacity: 26,6 kW
Adjustable barrel heating zones: 1+5
Pump power 37 Kw
Oil 425 L




Dimensions und weights
Total machine weight: 11.900  kg
Dimensions        ( L x B x H )  6.7 x 1.6 x 2.20 m
Accessories
- 2 x Core Hydraulic
- 2 x Air valve
- 8 x Hotrunner controllers
- Anti vibration pads
- Robot Interface Euromap 12
