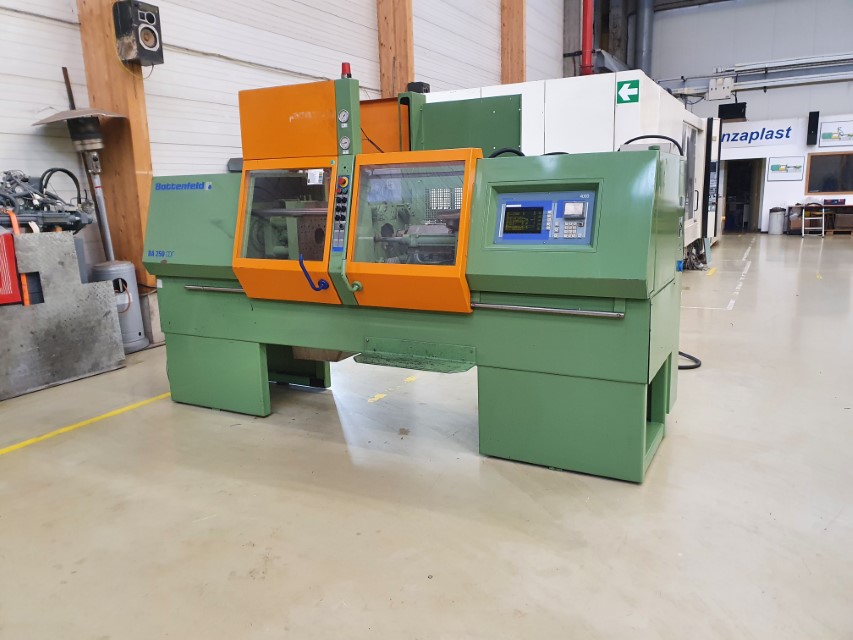

Battenfeld BA 250 - 050 CDC

Manufacturer: Battenfeld
Type of machine: BA 250 - 050 CDC
Year: 1996
Delivery time: Immediately
Terms of Delivery: Ex Works
Location: Awans - Belgium
Controlversion: Unilog 4000
Screen text: Dutch
Operating Hours 86.000 Hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 250 kN
Size of mould platens (h x v): 440 mm. x 440 mm.
Distance between tie bars (h x v): 270 mm x 270 mm
Mould opening stroke: 325 mm
Mould height min.: 125 mm
Mould height max.:  mm
Max daylight: 450 mm
Hydraulic ejector - stroke: 100 mm
Ejector force forward/backward: 17,6 kN
Injection unit
Screw diameter: 22 mm
Ls/D ratio: 16
Injection pressure: 1488 bar
Stroke volume: 33,4 ccm
Shot weight, PS: 30,4 g
Injection stroke: 88 mm
Screw speed: 0---410 1/min
Plasticising rate max.: 9,5 g/s
Nozzle pressure: 32,5kN
Electric and Hydraulic Equipment
Installed heating capacity: 3,16 kW
Adjustable barrel heating zones: 1+3
Pump power 5,5 Kw
Oil 110 L


Dimensions und weights
Total machine weight: 2.000 kg
Dimensions        ( L x B x H ) 3,05 x 1,40 x 2,0 m

Additional information
