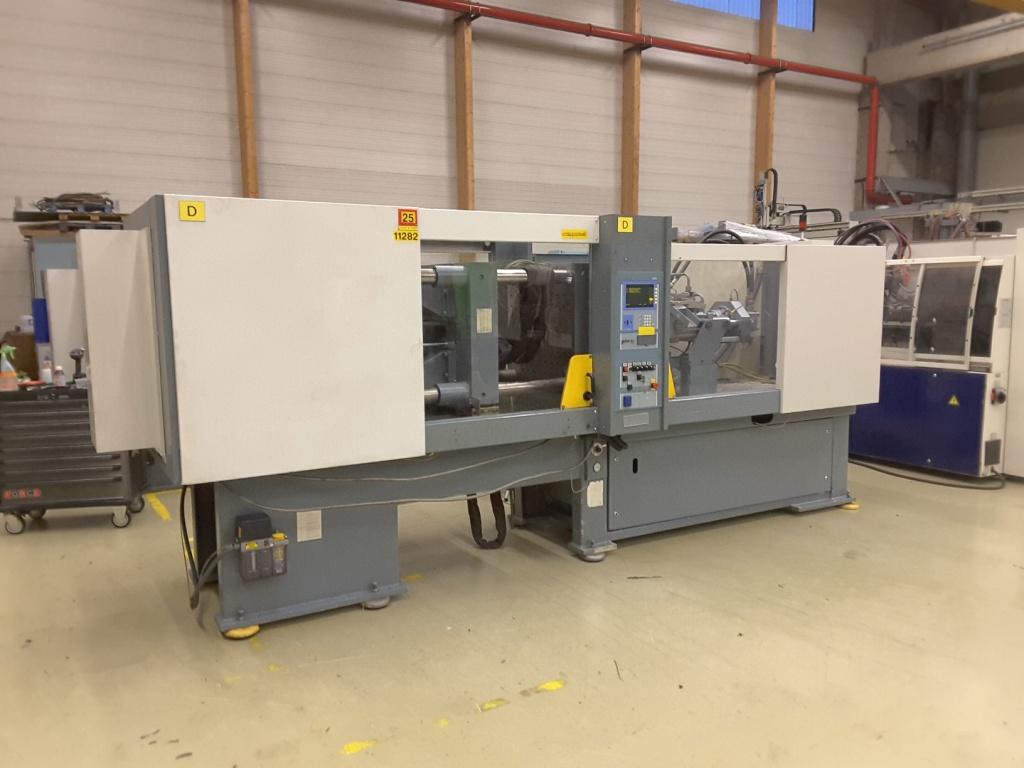

Battenfeld BA 2000 / 630 BKT
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 2000 / 630 BKT |
| Year: | 1998 |
| Delivery time: | Now |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 4000 B |
| Screen text: | French |
| Operating hours: | 91.634 hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2000 kN |
| Size of mould platens (h x v): | 800 mm x 800 mm |
| Distance between tie bars (h x v): | 560 mm x 560 mm |
| Mould opening stroke: | 450 mm |
| Mould height min.: | 200 mm |
| Mould height max.: | 520 mm |
| Max daylight: | 970 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | 67 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 45 mm |
| Ls/D ratio: | 20 |
| Injection pressure: | 2182 bar |
| Stroke volume: | 286 ccm |
| Shot weight, PS: | 260 g |
| Screw speed: | 1/min |
| Plasticising rate max.: | 30 g/s |
| Nozzle pressure: | kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 11,2 kW |
| Adjustable barrel heating zones: | 1+4 |
| Reservoir capacity: | 560 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 5,65 m x 1,45 m x 2,10 m |
| Total machine weight: | 9800 kg |
| Accessories | |
|---|---|
| - Anti vibration - 3 x Core - Robot interface Euromap 12 - - |
| Additional information | |
|---|---|
| - |
