Battenfeld BA 200 / 50 CD Plus
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 200 / 50 CD Plus |
| Year: | 1990 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 4000 |
| Screen text: | German / Englisch |
| Operating Hours | 16.865 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 200 kN |
| Size of mould platens (h x v): | 400 mm x 400 mm |
| Distance between tie bars (h x v): | 254 mm x 254 mm |
| Mould opening stroke: | 325 mm |
| Mould height min.: | 125 mm |
| Mould height max.: | -- mm |
| Max daylight: | 450 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 17,5 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 22 mm |
| Ls/D ratio: | 16 |
| Injection pressure: | 1488 bar |
| Stroke volume: | 33,4 ccm |
| Shot weight, PS: | 30,4 g |
| Injection stroke: | 88 mm |
| Screw speed: | 0--410 1/min |
| Plasticising rate max.: | 9,5 g/s |
| Nozzle pressure: | 32,5 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 3,16 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 5,5 Kw |
| Oil | 130 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 2.000 kg |
| Dimensions ( L x B x H ) | 2,70 x 1,15 x 1,80 m |
| Accessories | |
|---|---|
| - |
| Additional information | |
|---|---|
| - 4-fold Waterbattery |

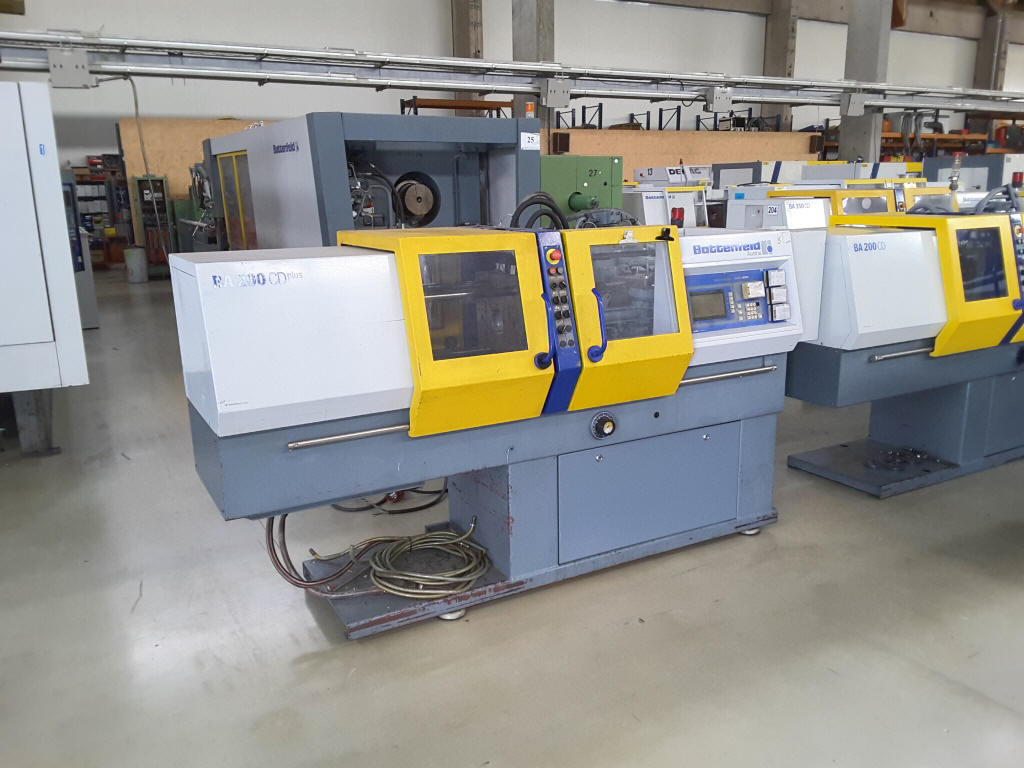

| Picture |
|---|
