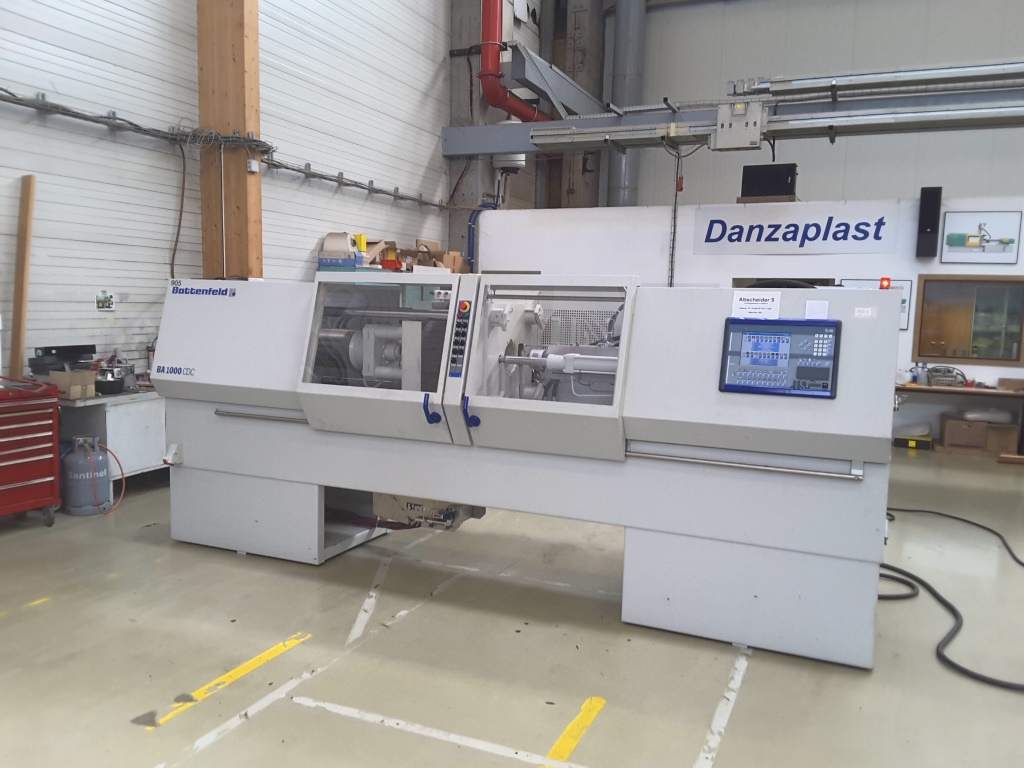

Battenfeld BA 1000 / 315 CDC TC 40
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 1000 / 315 CDC |
| Year: | 2000 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | TC 40 |
| Screen text: | Enlisch / German |
| Operating Hours | 54.915 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.000 kN |
| Size of mould platens (h x v): | 640 mm x 640 mm |
| Distance between tie bars (h x v): | 420 mm x 420 mm |
| Mould opening stroke: | 355 mm |
| Mould height min.: | 200 mm |
| Mould height max.: | 450 mm |
| Max daylight: | 805 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 17,6 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 45 mm |
| Ls/D ratio: | 17,8 |
| Injection pressure: | 1244 bar |
| Stroke volume: | 254 ccm |
| Shot weight, PS: | 231,5 g |
| Injection stroke: | 160 mm |
| Screw speed: | 275 1/min |
| Plasticising rate max.: | 26 g/s |
| Nozzle pressure: | 79,2 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 9,98 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 18,5 Kw |
| Oil | 195 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 5.000 kg |
| Dimensions ( L x B x H ) | 4,6 x 1,60 x 2,1 m |
| Accessories | |
|---|---|
| - Anti vibration pads - 1 x Core - Robot interface |
| Additional information | |
|---|---|
| - 4-fold Waterbattery |
