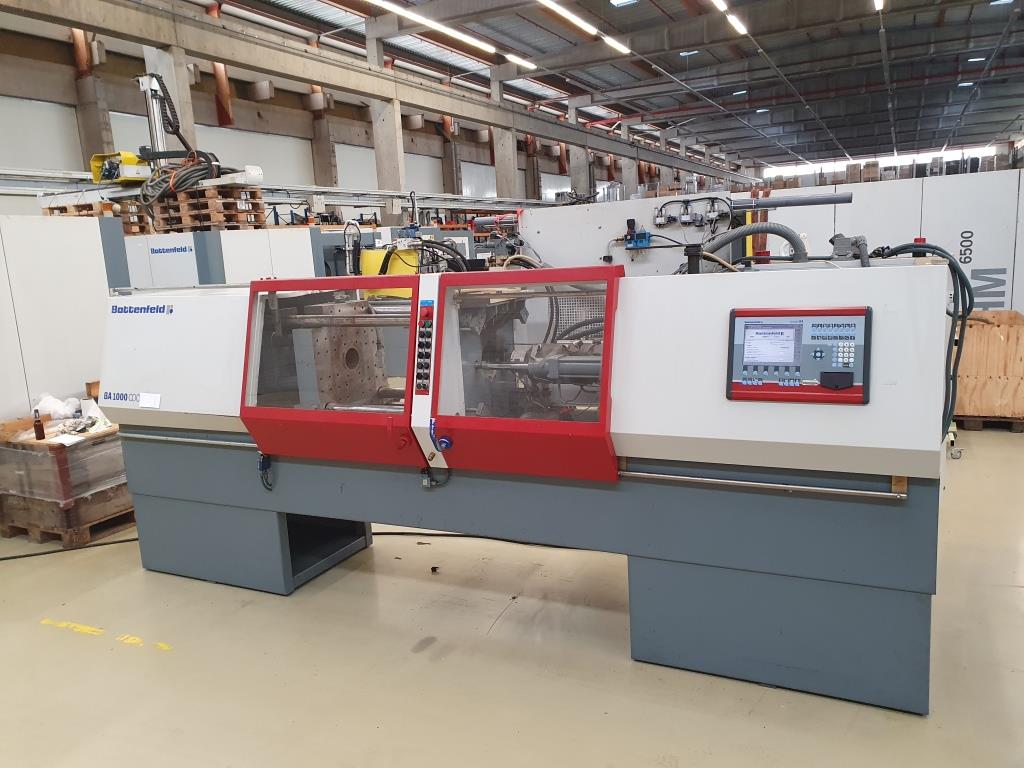

Battenfeld BA 1000 / 315 CDC


Manufacturer: Battenfeld
Type of machine: BA 1000 / 315 CDC
Year: 2000
Delivery time: Immediately
Terms of Delivery: Ex Works
Location: Awans - Belgium
Controlversion: Unilog B4
Screen text: German / Englisch
Operating hours: 69.476 hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 1.000 kN
Size of mould platens (h x v): 640 mm x 640 mm
Distance between tie bars (h x v): 420 mm x 420 mm
Mould opening stroke: 475 mm
Mould height min.: 350 mm
Mould height max.:  mm
Max daylight: 825 mm
Hydraulic ejector - stroke: 150 mm
Ejector force forward/backward: 27,5 kN
Injection unit
  Unit   --315-------
Screw diameter: 30                    mm
Ls/D ratio: 20
Injection pressure: 2800                   bar
Stroke volume: 113,1               ccm
Shot weight, PS: 102                     g
Injection stroke: 160                    mm
Screw speed:  1/min
Plasticising rate max.:  g/s
Nozzle pressure: 79,2 kN
Electric and Hydraulic Equipment
Installed heating capacity: 9,94 kW
Adjustable barrel heating zones:
Pump power Kw
Oil 260 L


Dimensions und weights
Total machine weight: 5.0000 kg
Dimensions        ( L x B x H ) 4,4 x 2,3 x 1,8 m
-Anti vibration pads
- 4 x Cores
- Robot Interface Euromap 12
Additional information
