Arburg 221 M - 250 - 55
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 221 M - 250 - 55 |
| Year: | 1996 |
| Delivery time: | Now |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Multronica |
| Screen text: | Dutch |
| Operating hours: | 38.889 hrs |
| Price: | On request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 250 kN |
| Size of mould platens (h x v): | 342 x 250 mm |
| Distance between tie bars (h x v): | 221 mm |
| Mould opening stroke: | 200 mm |
| Mould height min.: | 150 -- 300 mm |
| Max daylight: | mm |
| Hydraulic ejector - stroke: | 60 mm |
| Ejector force forward/backward: | 20 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 20 mm |
| Ls/D ratio: | 25 |
| Injection pressure: | 1950 bar |
| Stroke volume: | 31 ccm |
| Shot weight, PS: | 26 g |
| Injection rate: | 35 ccm/s |
| Injection stroke: | 100 mm |
| Nozzle pressure: | 50 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 5,5 kW |
| Installed heating capacity: | 4 x 900 + 300 kW |
| Adjustable barrel heating zones: | 4+1 |
| Reservoir capacity: | 120 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 2,68 m x 1,04 m x 1,5 m |
| Total machine weight: | 970 kg |
| Accessories | |
|---|---|
| - Robot interface - Anti vibration pads |
| Additional information | |
|---|---|
| - |

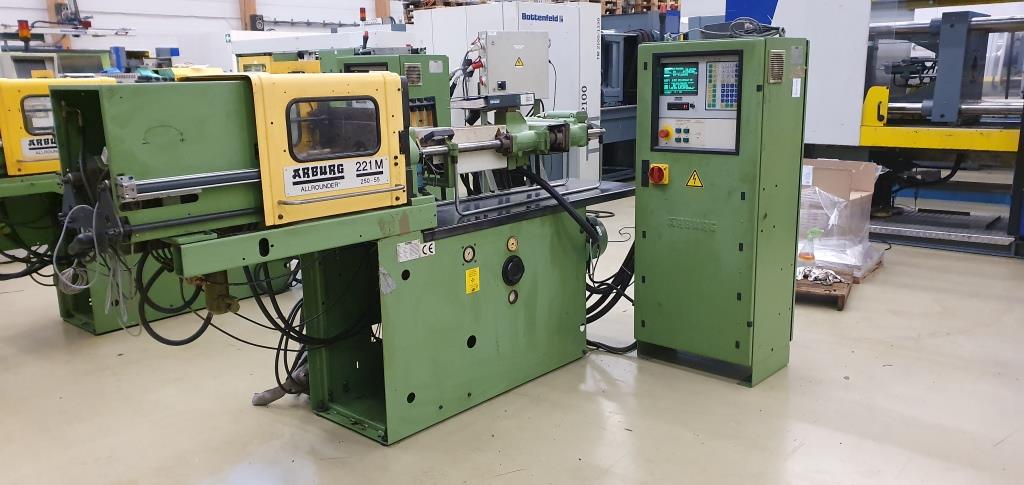

| Picture |
|---|
