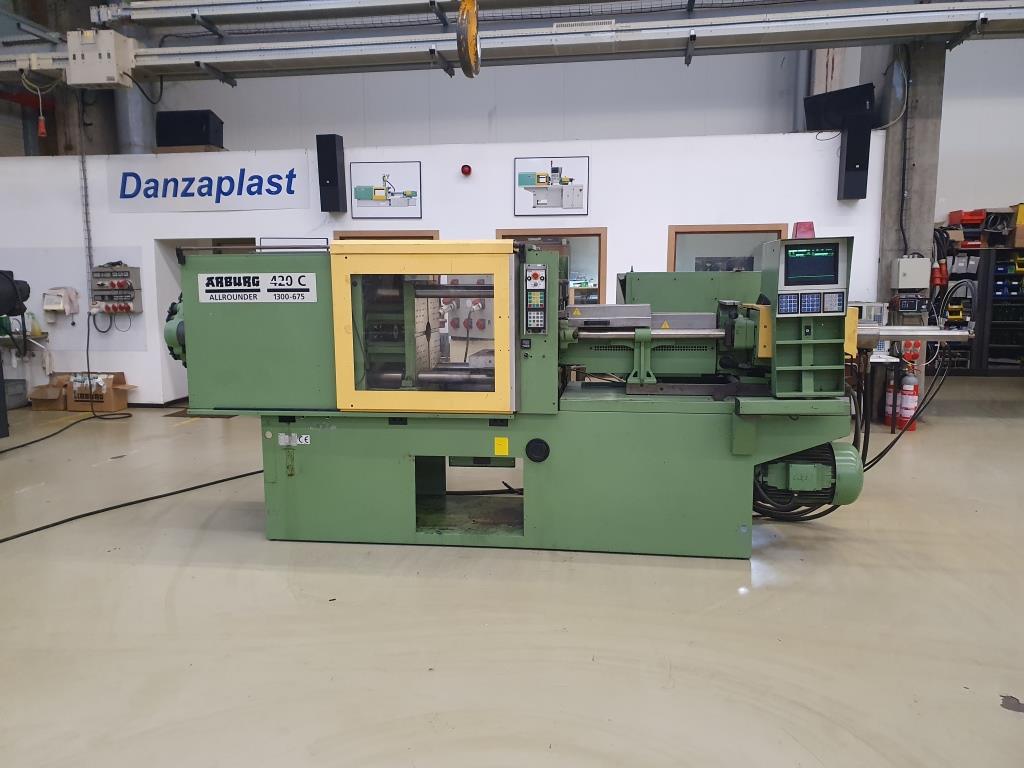

Arburg 420 C 1300 - 675
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 420 C 1300 - 675 |
| Year: | 1997 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Dialogica |
| Screen text: | German / Dutch |
| Operating hours: | 19.859 Hrs |
| Dry cycle | 3,5 sec. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.300 KN |
| Mould opening force, max.: | 35/350 kN |
| Size of mould platens (h x v): | 615mm x 615 mm |
| Distance between tie bars (h x v): | 420 mm x 420 mm |
| Mould opening stroke: | 500 mm |
| Mould height min.: | 250 mm |
| Max daylight: | 750 mm |
| Hydraulic ejector - stroke: | 175 mm |
| Ejector force forward/backward: | 40 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 45 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 2500 bar |
| Stroke volume: | 286 ccm |
| Shot weight, PS: | 240 g |
| Injection rate: | 170 cm/s |
| Injection stroke: | 180 mm |
| Screw speed: | 60 m/min |
| Nozzle pressure: | 70 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 30 kW |
| Installed heating capacity: | 13,8 kW |
| Reservoir capacity: | 240 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 4,350 m x 1,60 m x 2,08 m |
| Total machine weight: | 4.750 kg |
| Accessories | |
|---|---|
| - Robot Interface ( Euromap 12) - 1 x Core -Anti vibration pads - Hydr Gate - |
| Additional information | |
|---|---|
| - - - |
|
