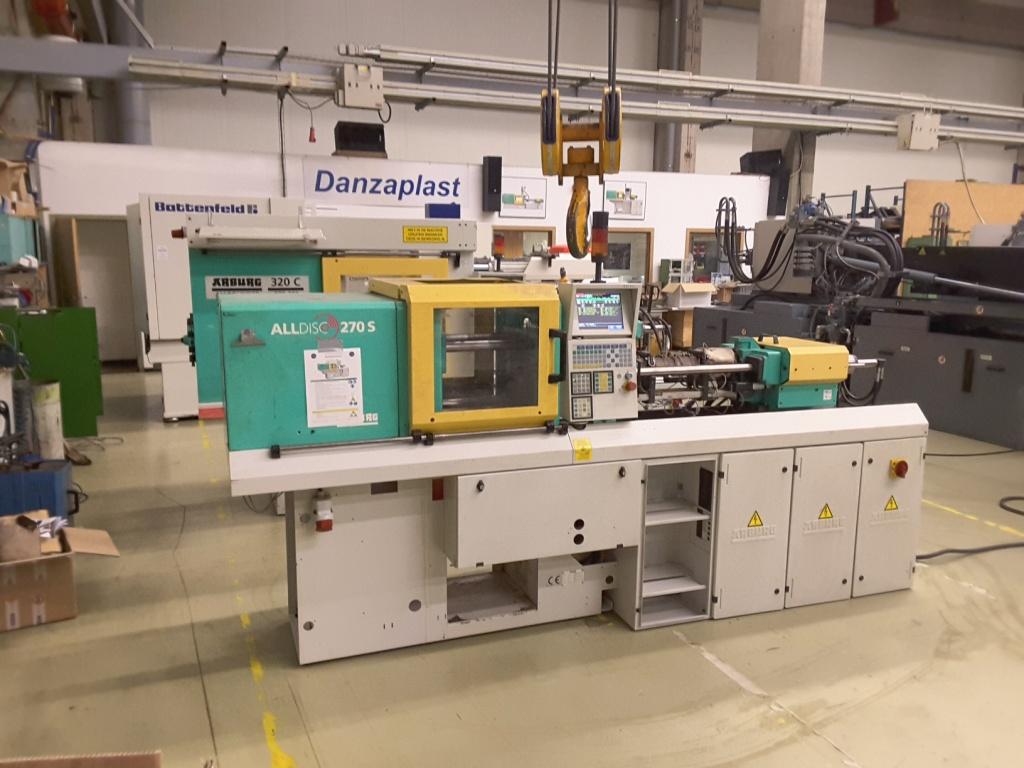

Arburg 270 S - CD 500 - 150
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 270 S - CD 500 - 150 |
| Year: | 1999 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Selogica |
| Screen text: | Dutch |
| Operating hours: | h |
| Price: | On request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 500 kN |
| Mould opening force, max.: | 32,5 kN |
| Size of mould platens (h x v): | 498 mm x 498 mm |
| Distance between tie bars (h x v): | 270 mm x 270 mm |
| Mould opening stroke: | 275 mm |
| Mould height min.: | 200 mm |
| Max daylight: | 475 mm |
| Hydraulic ejector - stroke: | 9 mm |
| Ejector force forward/backward: | kN |
| Injection unit | |
|---|---|
| Screw diameter: | 30 mm |
| Ls/D ratio: | 20 |
| Injection pressure: | 2200bar |
| Stroke volume: | 78 ccm |
| Shot weight, PS: | 65 g |
| Injection rate: | 82 ccm/s |
| Injection stroke: | 110 mm |
| Screw speed: | 65 m/min |
| Nozzle pressure: | 73 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 5,4 kW |
| Reservoir capacity: | 150 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3.35 m x 1 m x 1.5 m |
| Total machine weight: | 2.700 kg |
| Accessories | |
|---|---|
| - Anti vibration pads |
| Additional information | |
|---|---|
| - |
|
