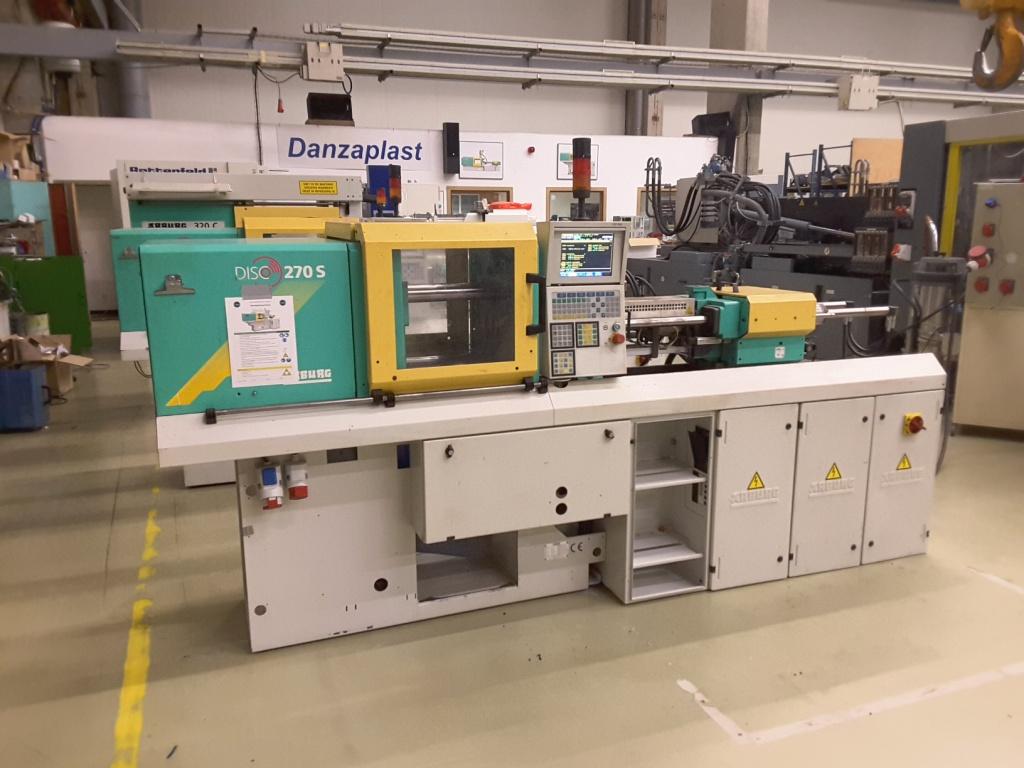

Arburg 270 S - CD 500 - 150

Details



Manufacturer: Arburg
Type of machine: 270 S - CD 500 - 150
Year: 1999
Delivery time: Immediately
Terms of Delivery: Ex Works
Location: Awans - Belgium
Controlversion: Selogica
Screen text: Dutch
Operating hours:  h
Price: On request

Technical details

Clamping unit
Clamping force: 500 kN
Mould opening force, max.: 32,5 kN
Size of mould platens (h x v): 498 mm x 498 mm
Distance between tie bars (h x v): 270 mm x 270 mm
Mould opening stroke: 275 mm
Mould height min.: 150 mm
Max daylight: 425 mm
Hydraulic ejector - stroke: 9 mm
Ejector force forward/backward: kN
Injection unit
Screw diameter: 30 mm
Ls/D ratio: 25
Injection pressure: 2200 bar
Stroke volume: 77 ccm
Shot weight, PS: 65 g
Injection rate: 112 ccm/s
Injection stroke: 109 mm
Screw speed: 65 m/min
Nozzle pressure:  kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 22 kW
Installed heating capacity:  kW
Reservoir capacity: 120 ltr.
Dimensions und weights
Dimensions of the machine ca.: 3.35 m x 1 m x 1.6 m
Total machine weight: 2.700 kg
Accessories
- Anti vibration pads
