Arburg 270 S - 250 - 60
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 270 S - 250 - 60 |
| Year: | 1996 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Selogica |
| Screen text: | German |
| Operating hours: | 67.884 hrs |
| Price: | On request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 250 kN |
| Mould opening force, max.: | 14 kN |
| Size of mould platens (h x v): | 400 mm x 400 mm |
| Distance between tie bars (h x v): | 270 mm x 270 mm |
| Mould opening stroke: | 275 mm |
| Mould height min.: | 200 mm |
| Max daylight: | 475 mm |
| Hydraulic ejector - stroke: | 95 mm |
| Ejector force forward/backward: | 15 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 25 mm |
| Ls/D ratio: | 17,5 |
| Injection pressure: | 1800 bar |
| Stroke volume: | 39 ccm |
| Shot weight, PS: | 33 g |
| Injection rate: | 78 ccm/s |
| Injection stroke: | 80 mm |
| Screw speed: | 53 m/min |
| Nozzle pressure: | 30 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 3.15 kW |
| Reservoir capacity: | 120 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 2.9 m x 1 m x 1.8 m |
| Total machine weight: | 1.900 kg |
| Accessories | |
|---|---|
| - Anti vibration pads |
| Additional information | |
|---|---|
| - Robot interface Euromap 12 |

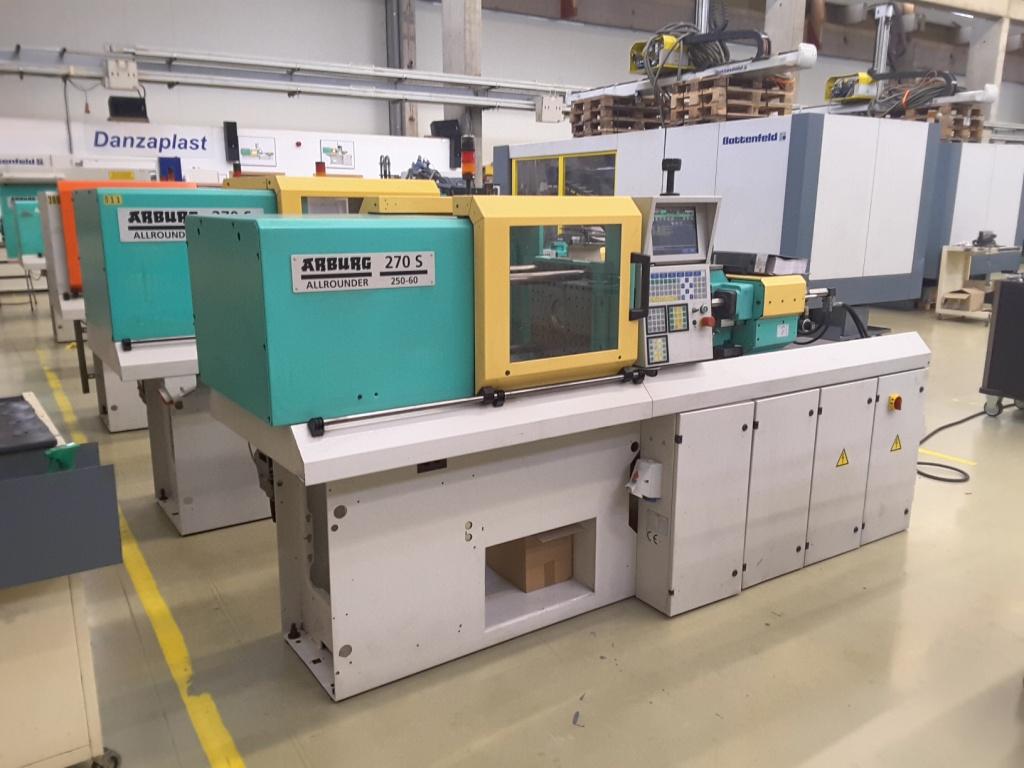

| Picture |
|---|
