Arburg 270 M - 350 - 90
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 270 M - 350 - 90 |
| Year: | 1996 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Dialogica |
| Screen text: | German |
| Operating hours: | 62.551 Hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 350 kN |
| Mould opening force, max.: | 25 / 125 kN |
| Size of mould platens (h x v): | 400 mm x 400 mm |
| Distance between tie bars (h x v): | 270 mm x 270 mm |
| Mould opening stroke: | 325 mm |
| Mould height min.: | 225 mm |
| Max daylight: | 550 mm |
| Hydraulic ejector - stroke: | 125 mm |
| Ejector force forward/backward: | 31,4 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 25 mm |
| Ls/D ratio: | 20 |
| Injection pressure: | 1860 bar |
| Stroke volume: | 49 ccm |
| Shot weight, PS: | 40 g |
| Injection rate: | 88 ccm/s |
| Injection stroke: | 100 mm |
| Screw speed: | 37 m/min |
| Nozzle pressure: | 60 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 11 kW |
| Installed heating capacity: | 3.9 kW |
| Reservoir capacity: | 190 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,7 m x 1,75 m x 1,50 m |
| Total machine weight: | 1.720 kg |
| Accessories |
|---|
| - - Anti vibration pads |
| Additional information |
|---|
| - 1 x Core - - - |

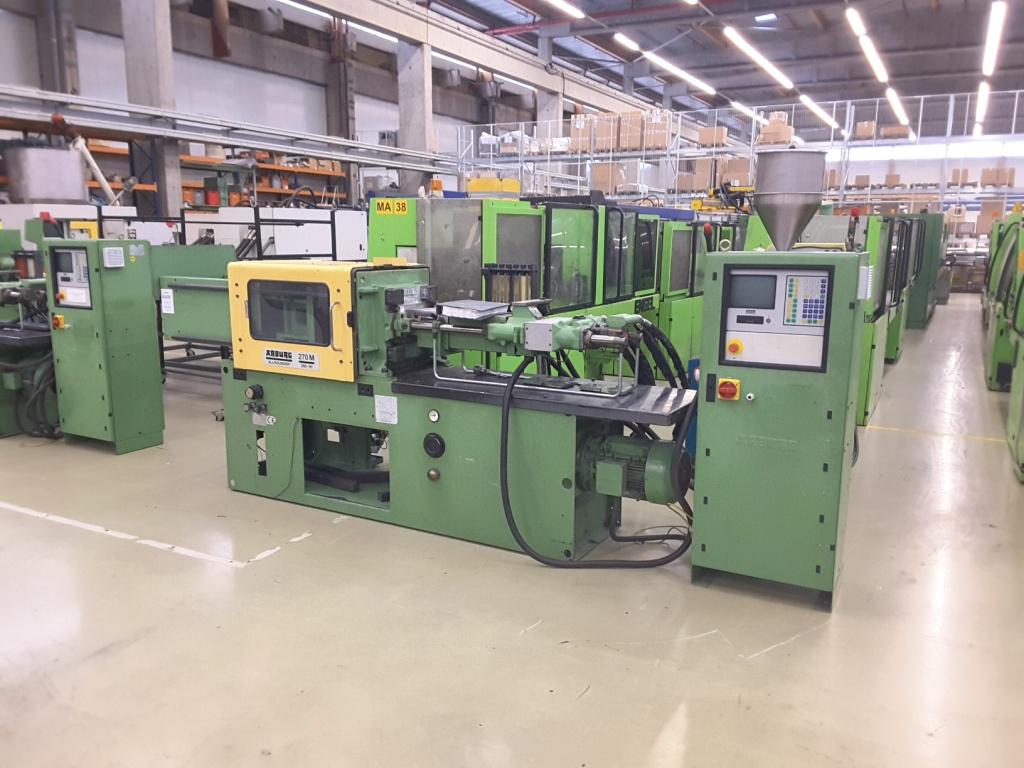

| Picture |
|---|
