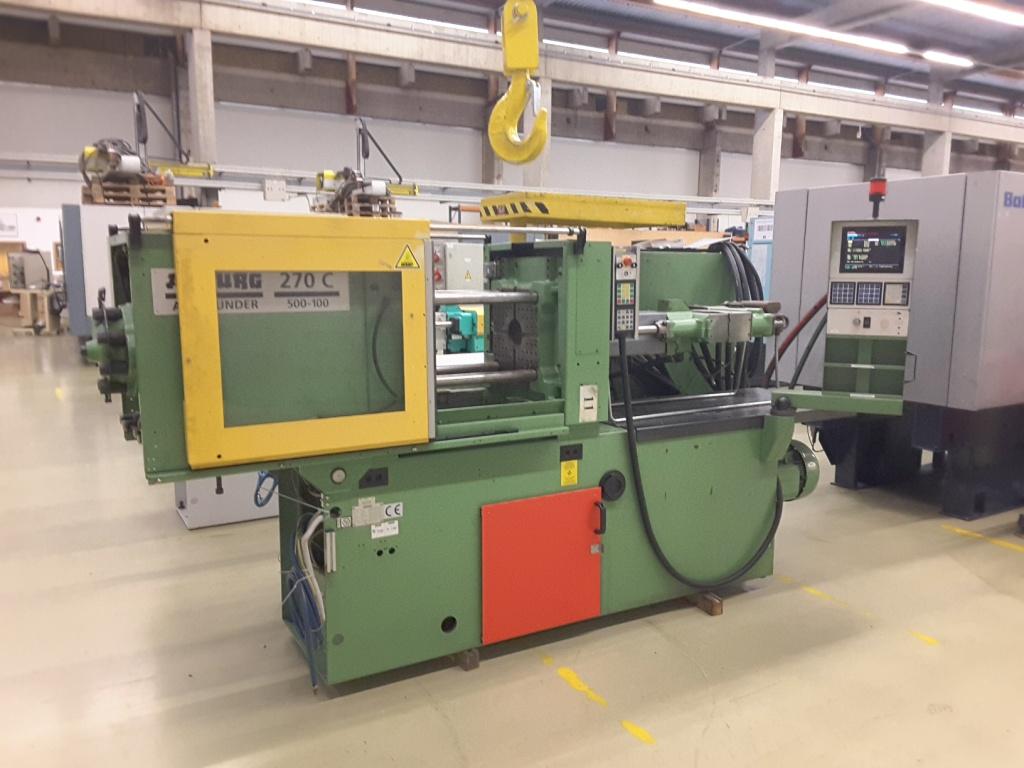

Arburg 270 C - 500 - 100 U
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 270 C - 500 - 100 U |
| Year: | 1997 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Dialogica |
| Screen text: | German |
| Operating hours: | 14.224 Hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 500 kN |
| Mould opening force, max.: | 130 Kn |
| Size of mould platens (h x v): | 405 x 405 |
| Distance between tie bars (h x v): | 270 x 270 |
| Mould opening stroke: | 350 |
| Mould height min.: | 200 |
| Max daylight: | 550 |
| Hydraulic ejector - stroke: | 125 |
| Ejector force forward/backward: | 30 |
| Injection unit | |
|---|---|
| Screw diameter: | 20 mm |
| Ls/D ratio: | 25 |
| Injection pressure: | 2500 bar |
| Stroke volume: | 31 ccm |
| Shot weight, PS: | 26 g |
| Injection rate: | 56 ccm/s |
| Injection stroke: | 100 mm |
| Screw speed: | 30 m/min |
| Nozzle pressure: | 56 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 5,4 kW |
| Reservoir capacity: | 160 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3.3 m x 1.3 m x 1.8 m |
| Total machine weight: | 2500 kg |
| Accessories | |
|---|---|
| - 1 x Core - Aut. Gate - Robot interface Euromap 12 - Anti vibration pads |
| Additional information | |
|---|---|
| - - - -fold Waterbattery |
|
Video Picture |
|---|
