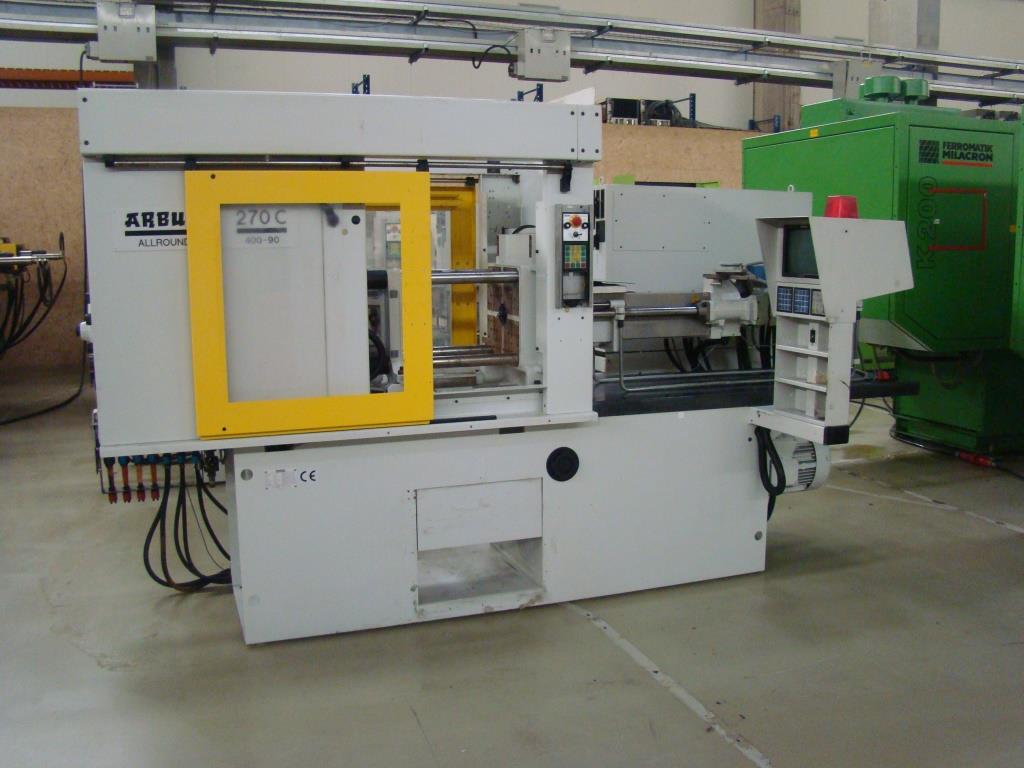

Arburg 270 C - 400 - 90
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 270 C - 400 - 90 |
| Year: | 1995 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |

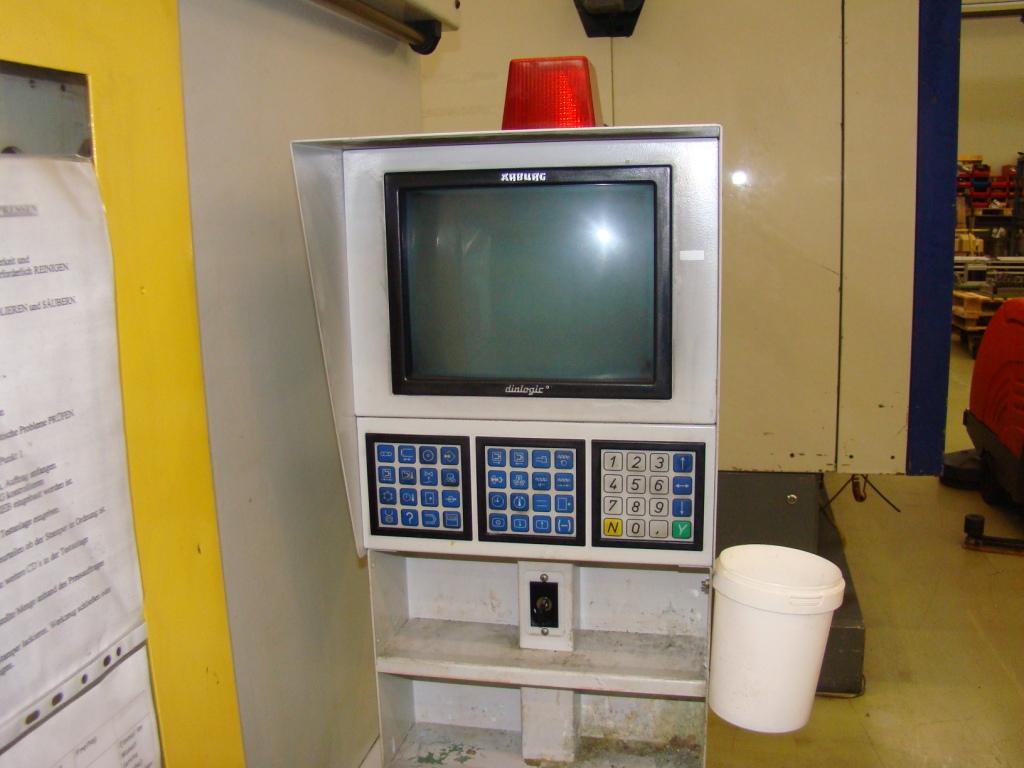

| Controlversion: | Dialogica |
| Screen text: | English / German |
| Operating hours: | 15050 Hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 400 kN |
| Mould opening force, max.: | 25 / 125 kN |
| Size of mould platens (h x v): | 405 mm x 405 mm |
| Distance between tie bars (h x v): | 270 mm x 270 mm |
| Mould opening stroke: | 350 mm |
| Mould height min.: | 200 mm |
| Max daylight: | 550 mm |
| Hydraulic ejector - stroke: | 125 mm |
| Ejector force forward/backward: | 30 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 30 mm |
| Ls/D ratio: | 25 |
| Injection pressure: | 1500 bar |
| Stroke volume: | 70 ccm |
| Shot weight, PS: | 59 g |
| Injection rate: | 125 ccm/s |
| Injection stroke: | 100 mm |
| Screw speed: | 43 m/min |
| Nozzle pressure: | 50 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 11 kW |
| Installed heating capacity: | 10,6 kW |
| Reservoir capacity: | 200 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 2,32 m x 1,41 m x 2,00 m |
| Total machine weight: | 2.200 kg |
| Accessories | |
|---|---|
| - - Anti vibration pads |
| Additional information | |
|---|---|
| - - - -fold Waterbattery |
| Picture |
|---|
