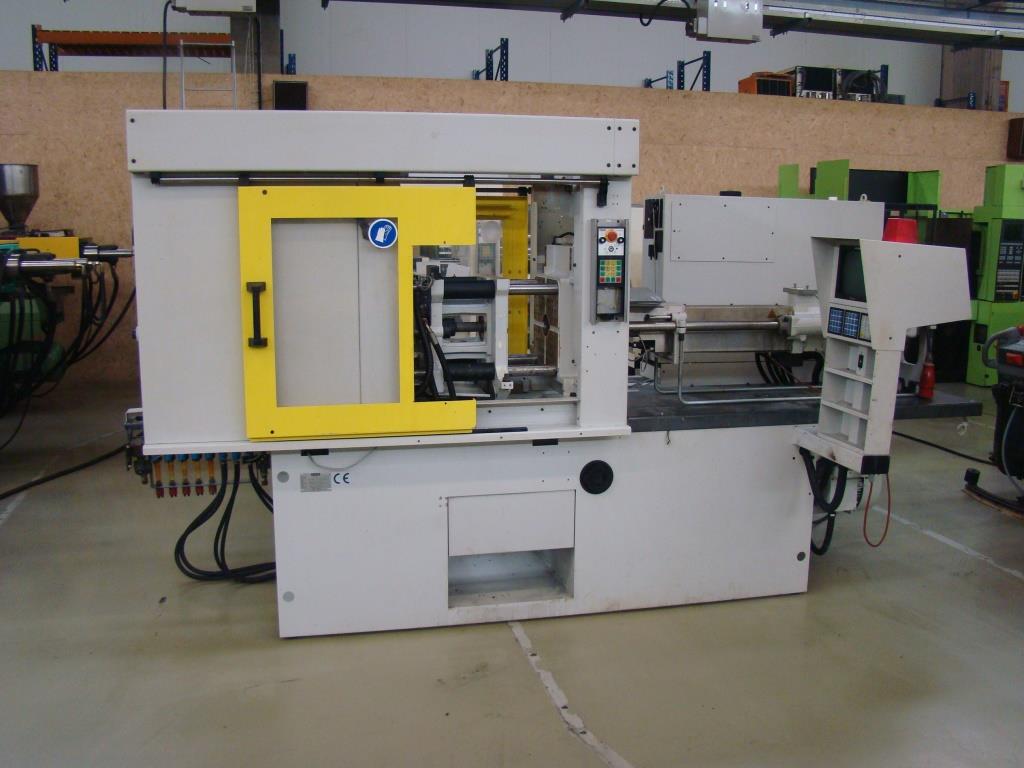

Arburg 270 C - 400 - 90

Details



Manufacturer: Arburg
Type of machine: 270 C - 400 - 90
Year: 1996
Delivery time: Immediately
Terms of Delivery: Ex Works
Location: Awans - Belgium
Controlversion: Dialogica
Screen text: English / German
Operating hours: 26.360 Hrs
Price: on request

Technical details

Clamping unit
Clamping force: 400 kN
Mould opening force, max.: 25 / 125 kN
Size of mould platens (h x v): 405 mm x 405 mm
Distance between tie bars (h x v): 270 mm x 270 mm
Mould opening stroke: 350 mm
Mould height min.: 200 mm
Max daylight: 550 mm
Hydraulic ejector - stroke: 125 mm
Ejector force forward/backward: 30 kN
Injection unit
Screw diameter: 30 mm
Ls/D ratio: 25
Injection pressure: 1500 bar
Stroke volume: 70 ccm
Shot weight, PS: 59 g
Injection rate: 125 ccm/s
Injection stroke: 100 mm
Screw speed: 43 m/min
Nozzle pressure: 50 kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 11 kW
Installed heating capacity: 10,6 kW
Reservoir capacity: 200 ltr.
Dimensions und weights
Dimensions of the machine ca.: 3,52 m x 1,40 m x 2,00 m
Total machine weight: 2.200 kg
Accessories
-
- Anti vibration pads
Additional information
-
-
- -fold Waterbattery
