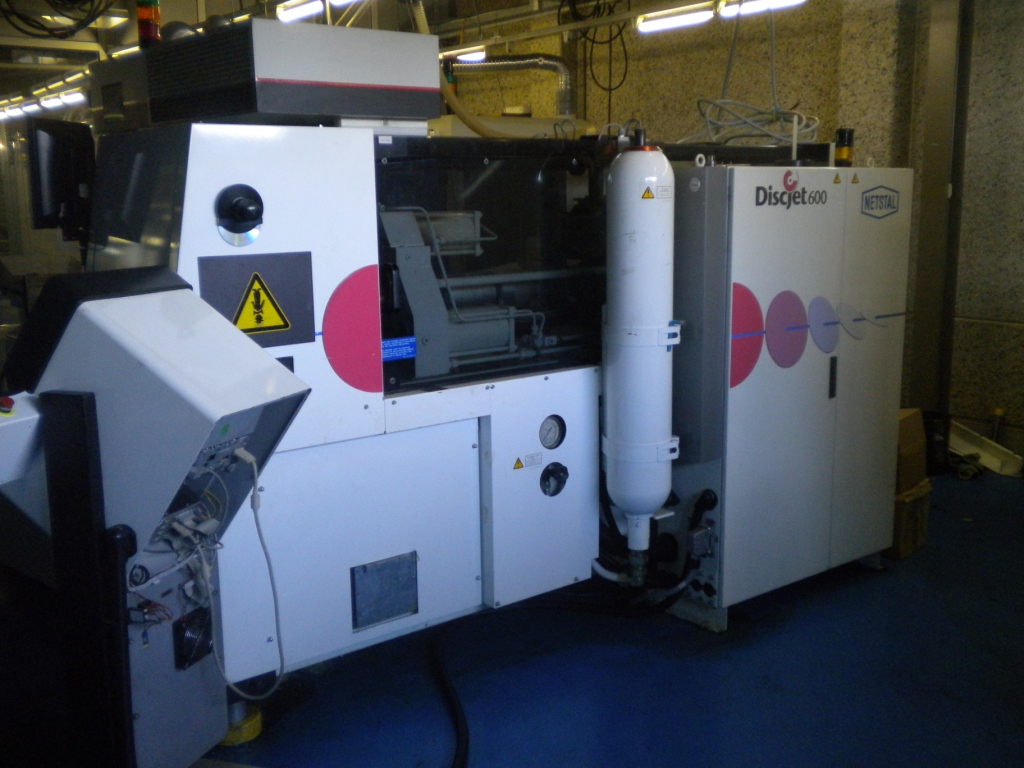

Netstal Discjet  600 / 110

Details
Manufacturer: Netstal
Type of machine: Discjet 600 / 110
Year: 1998
Delivery time: Now
Terms of Delivery: Ex - Works
Location: Awans - Belgium
Controlversion:
Screen text:
Operating hours: 17.158 hrs
Price: on request

Technical details

Clamping unit
Clamping force: 600 kN
Mould opening force, max.:  kN
3 - Design with 3 tie-bars Singel cavery mold

Mould opening stroke in production: 75 mm
Shut Height 100 - 200 mm



Injection unit      110
Screw diameter: 32 mm
Ls/D ratio: 20
Injection pressure: 1482 bar
Stroke volume: 119 ccm
Stroke of the injection Unit 100 mm
Shot weight, PS:  g
Injection rate: 1000 mm / sec
Screw speed: 7501/min


Electric and Hydraulic Equipment
Nominal capacity of pump motor: 15 kW
Installed heating capacity: 10.4 kW
Adjustable barrel heating zones:
Dry cycle number:  /min.
Dry cycle time:  sec
Reservoir capacity: 200 ltr.
Dimensions und weights
Dimensions of the machine ca.: 3,07 m x 1,037 m x 1,68 m
Total machine weight: 2.800 kg
Max. mould weight:  kg
Accessories
- Anti vibration pads
