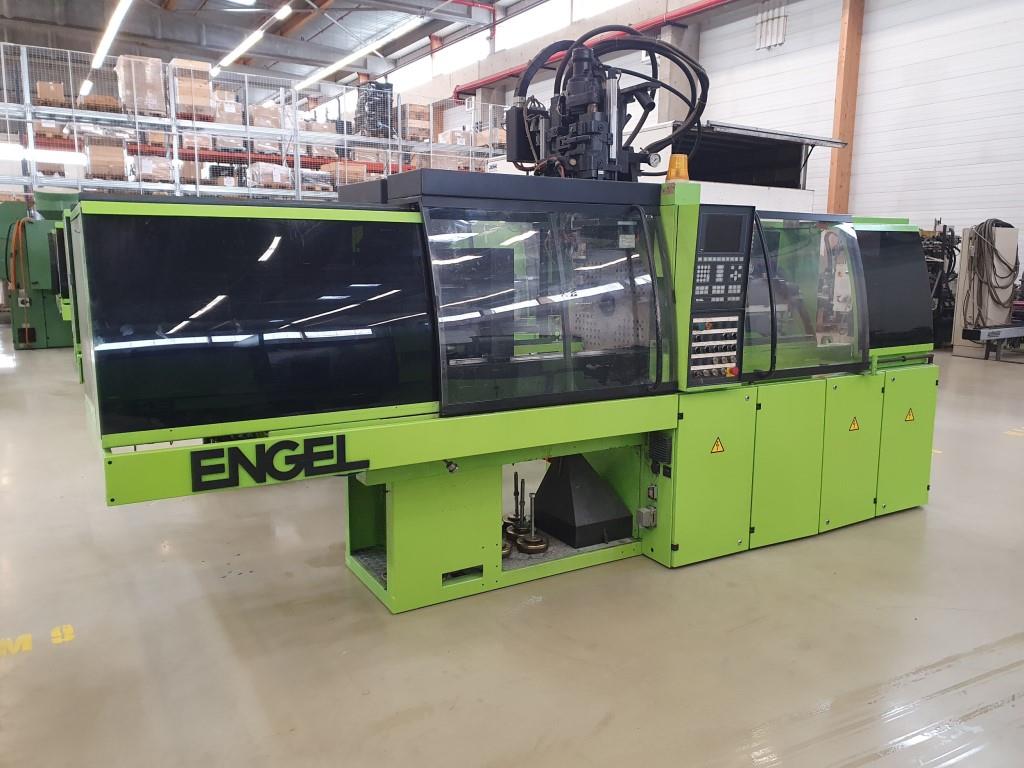

Engel ES 200 H / 80 V / 65H- HL - 2F

DetailsF
Manufacturer: Engel
Type of machine: ES 200 H / 80 V / 65H- HL -2F
Year: 1994
Delivery time: Now
Terms of Delivery: EX Works
Location: B - 4340 Awans
Controlversion: EC 100 A01
Screen text: Dutch
Operating hours:  hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 650 kN
Size of mould platens (h x v): 660 mm x 560 mm
Distance between tie bars (h x v): HL
Mould opening stroke: 450 mm
Mould height min.: 250 mm
Max daylight: 550 mm
Hydraulic ejector - stroke: 100 mm
Ejector force forward/backward: 25,4 kN
                      Injection unit
Agg 200                        80 V
Screw diameter: 30                          22   mm
L/D
Injection pressure: 1450                       1500 bar
Stroke volume CC: 98                           38   ccm
Shot weight, PS: 88                           35 g
Screw Stroke 140                        100  mm
Injection rate: 133                          54 cc /s
Screw speed: 20-480                 20-450 1/min
Nozzle pressure: 28                           28  kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 15                           7,5 kW
Installed heating capacity: 6,8                          5,9 kW
Adjustable barrel heating zones: 3+1                        3+1
Reservoir capacity:                      275 ltr.
Dimensions und weights
Dimensions of the machine ca.: 4,6 m x 1,4 m x 2,84m
Total machine weight: 6.300 kg



Accessories
- Anti vibration pads
-
Additional information
- 1 x Cores
- 1 x Hydr  turn table
-
- Robot interface  Euromap 12
-
