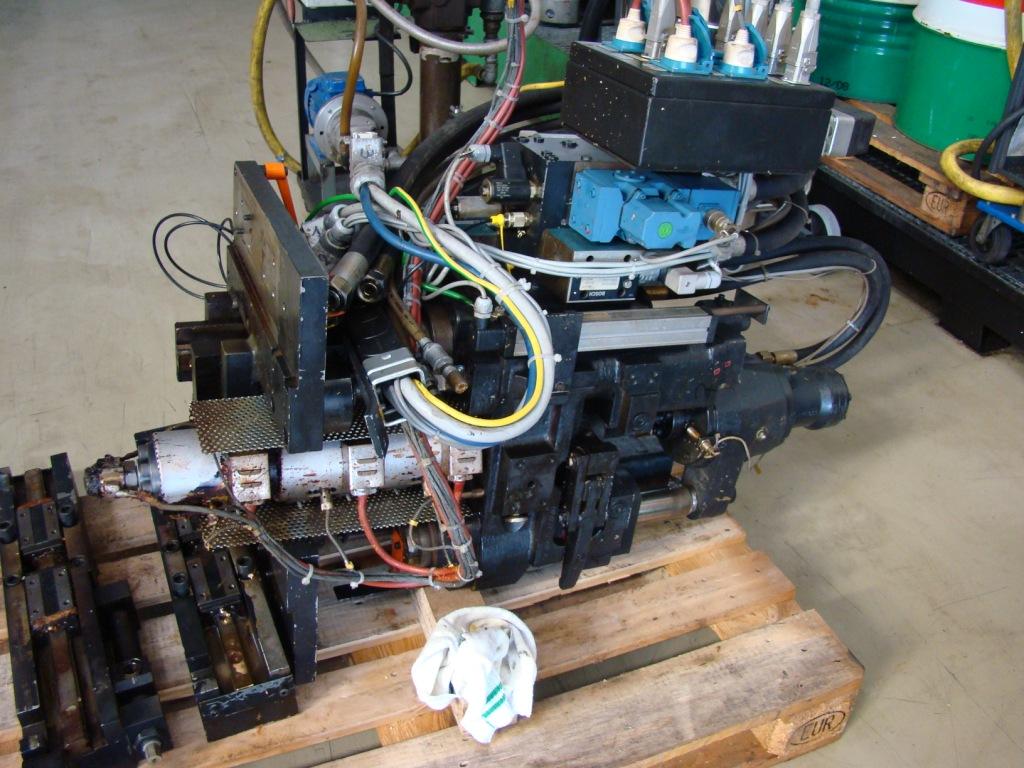

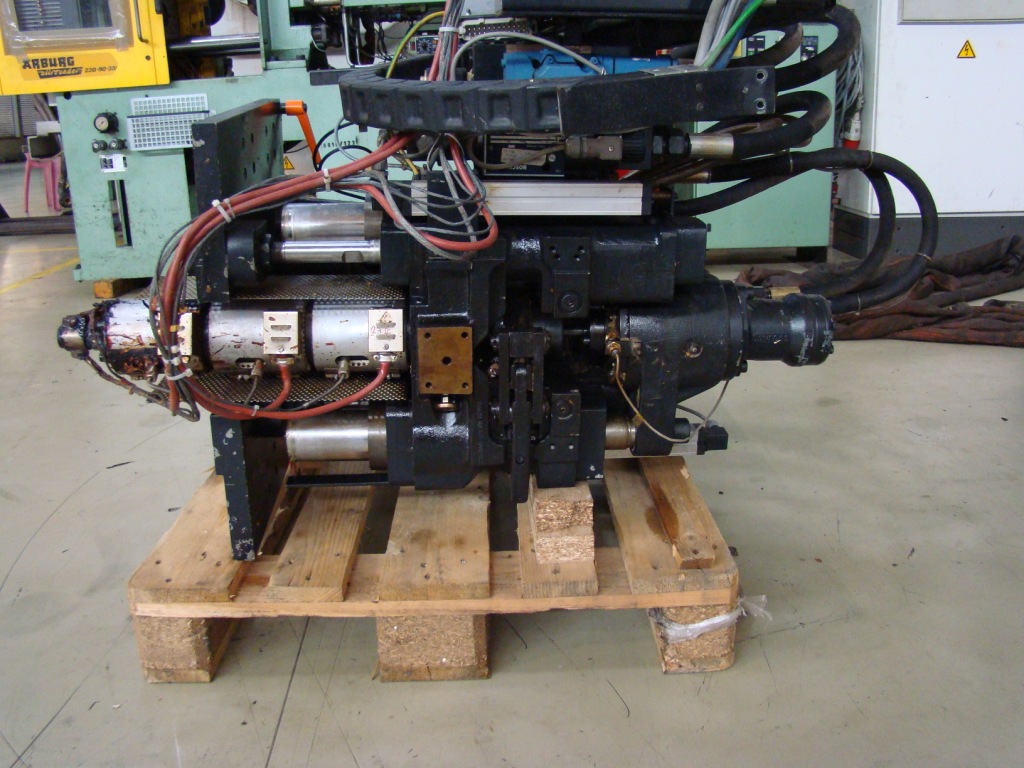

Engel Injection Unit  80 V

Details
Manufacturer: Engel
Type of machine:  80H
Year: 1993
Delivery time: Immediately
Terms of Delivery: Ex - Works
Location: Awans - Belgium
Controlversion:
Screen text:
Operating hours:   hrs.
Price: On Request

Technical details

Injection unit                                80 V
Screw diameter: 18      mm
Injection pressure: 2200    bar
Stroke volume:  25      ccm
Shot weight, PS:  22   g
Screw speed: 20 - 450 1/min
Plasticising rate max.: 5 g/s
Nozzle pressure:  28 kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 7,5 kW
Installed heating capacity:  5,9  kW
Adjustable barrel heating zones:   3+1
Dry cycle time:  sec
Reservoir capacity: 90 ltr.
Dimensions und weights
Dimensions : 1,30 m x 1,00m x 1,00 m
 weight: 600 kg
Accessories
-
-
Additional information
