Demag Ergotech 125 / 320 Systeem

Details
Manufacturer: Demag
Type of machine: Ergotech 125 / 320 Systeem
Year: 1996
Delivery time: Now
Terms of Delivery: EX - Works
Location: Awans - Belgium
Controlversion: NC IV
Screen text: Dutch /
Operating hours: 82.760 hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 1.250 kN
Size of mould platens (h x v): 690 mm x 660 mm
Distance between tie bars (h x v): 475 mm x 450 mm
Mould opening stroke: 450 mm
Mould height min./ max: 230 / 460 mm
Max daylight: 910 mm
Hydraulic ejector - stroke: 140 mm
Ejector force forward/backward: 58 / 26 kN

Injection unit
Screw diameter: 30 mm
Injection pressure: 2420 bar
Stroke volume: 124 ccm
Shot weight, PS: 110 g
Screw Stroke 175 mm
Injection rate:  ccm/s
Screw speed:  1/min
Plasticising rate max.:  g/s
Nozzle pressure:  80 kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 22 kW
Installed heating capacity: 7,9 kW
Dry cycle number: 1830 1/h
Reservoir capacity: 500 ltr.
Dimensions und weights
Dimensions of the machine ca.:
      4900 x 1600 x 2100 mm
                               weight: 6200 kg
Accessories
Wedge type anti-vibration pads
Additional information
- Robot interface
- 2x Hotrunner controllers
-Separator
-

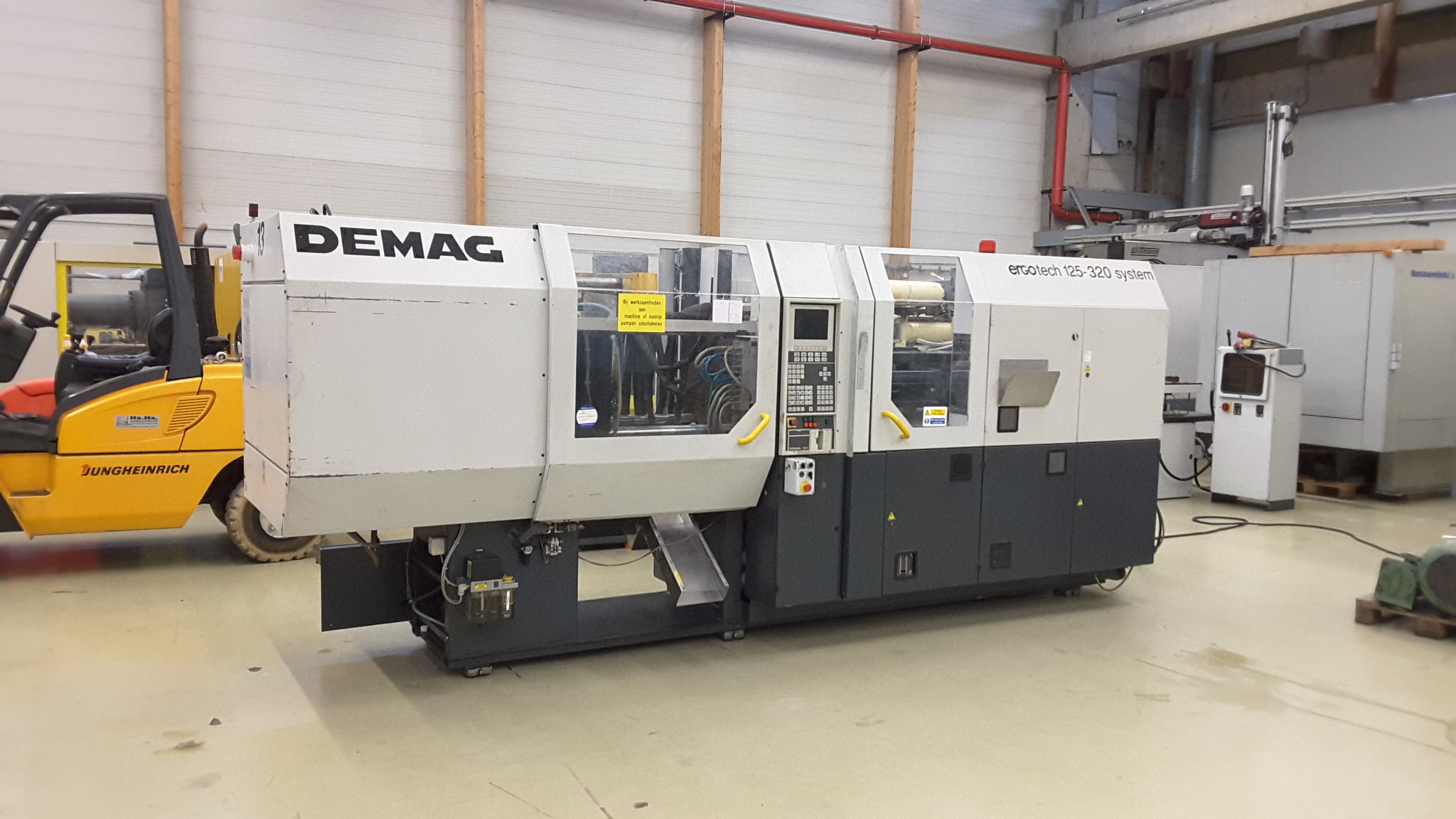

Demag ET 125 - 300 System 8750208
