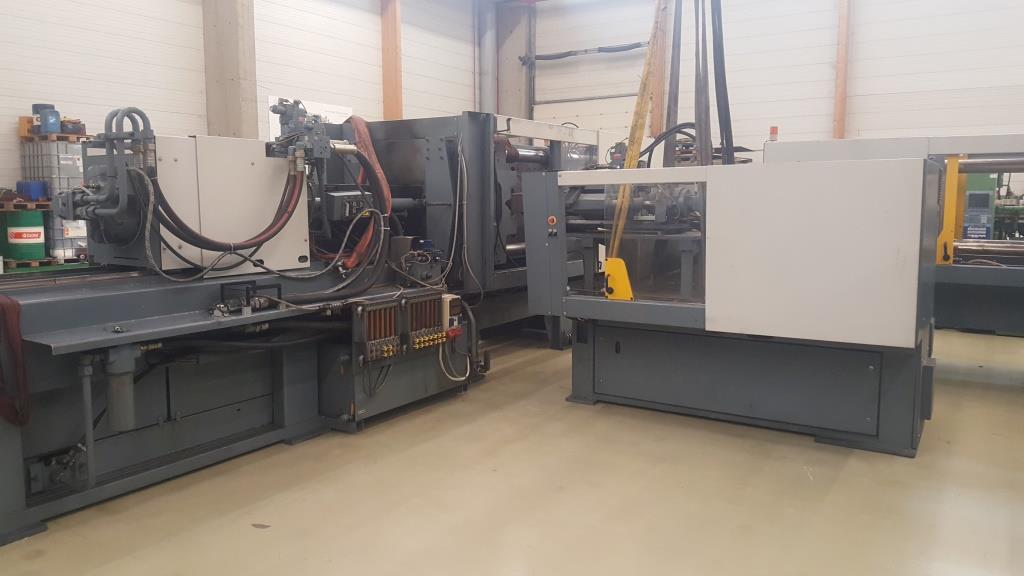

Battenfeld BA 4500 / 1900 +400L HM U 9000 C

Details
Manufacturer: Battenfeld
Type of machine: BA 4500/1900 + 400L
Year: 1998
Delivery time: Immediately
Terms of Delivery: Now
Location: Awans - Belgium
Controlversion: Unilog 9000 C
Screen text: German /
Operating Hours  Hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 4.500 kN
Size of mould platens (h x v): 1120 mm x 1120 mm
Distance between tie bars (h x v): 800 x 800 mm
Mould opening stroke: 760 mm
Mould height min.: 270 mm
Mould height max.: 770 mm
Max daylight: 1530 mm
Hydraulic ejector - stroke:  mm
Ejector force forward/backward:  kN

Injection unit
  Unit 1900       Unit 400
Screw diameter: 55                        35       mm
Ls/D ratio: 22                       22,9
Injection pressure: 2485                  2571    bar
Stroke volume: 772                    154    ccm
Shot weight, PS: 703                     140     g
Injection stroke:                                       mm
Screw speed:  1/min
Plasticising rate max.: 52                          19     g/s
Nozzle pressure:                                        kN
Electric and Hydraulic Equipment
Installed heating capacity: 22,7 + 9 kW
Adjustable barrel heating zones:
Pump power 65 + 18,5 Kw
Oil   L




Dimensions und weights
Total machine weight: 17.000 kg
Dimensions        ( L x B x H ) 7,5 x 2,1 x 2,4 m
Accessories
- Robot interface Euromap 12
- 4 x cores
-
- Air Valve
Additional information
-
-
